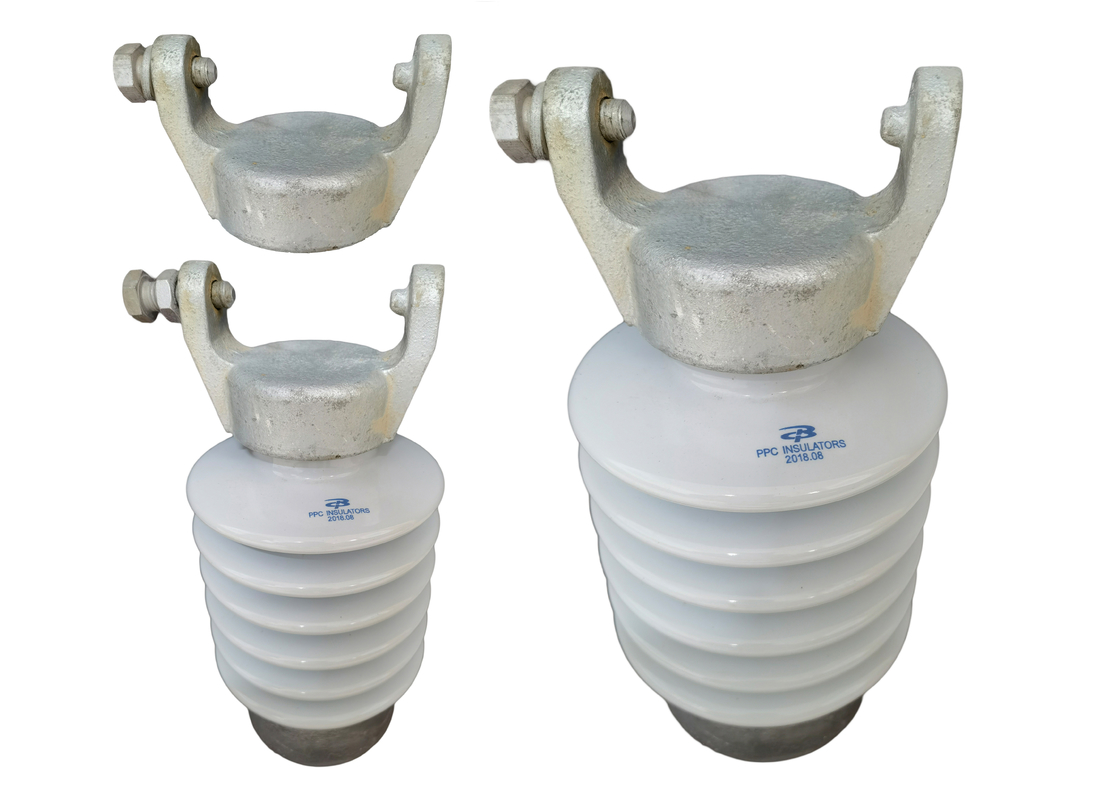

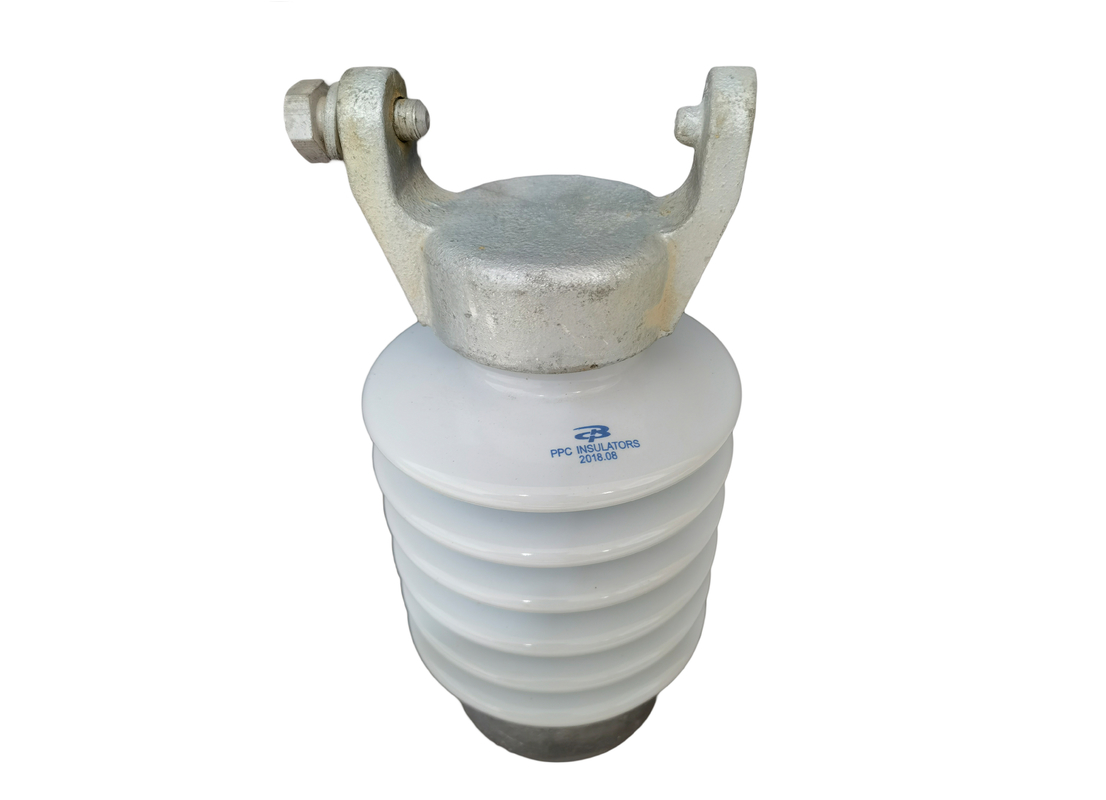

Light Gray Porcelain Line Post Insulator ANSI

Light Gray Porcelain Line Post Insulator ANSI

  • High Light

    Porcelain Line Post Insulator ANSI

    ,

    Light Gray Line Post Insulator

    ,

    porcelain c-120 electric pole insulator

  • Color
    Light Gray
  • Material
    Porcelain C-120
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Indoor Post Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    5335
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    2000PCS PER MONTH

Light Gray Porcelain Line Post Insulator ANSI

Porcelain 5335 Line Post Insulator ANSI OEM



Features:
We offers a wide range of porcelain post insulators. For decades, these products have demonstrated reliable performance in various types of applications all over the world. Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation. Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.





Hardwares:

Our insulators have externally attached caps or bases. a highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.





Porcelain body:

Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain . the body is glazed to add strength improve surface appearance, and enhance clean-ability.





specification:

DIN 42539 DIN 42540 DIN 42541 DIN 42542 DIN 42543
DT3/250A+B 135+55 120 30 90







Applications:

post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.





Competitive advantages:

Reasonable insulation structure high reliability of inter-turn insulation.

Stainless steel flange low magnetic inductivity high resistivity.

Convenient transportation and flexible installation.

High mechanical strength, strong weather ability.

Low thermal expansion coefficient.

Outstanding crack resistance.

Low temperature rise.

Low loss.
