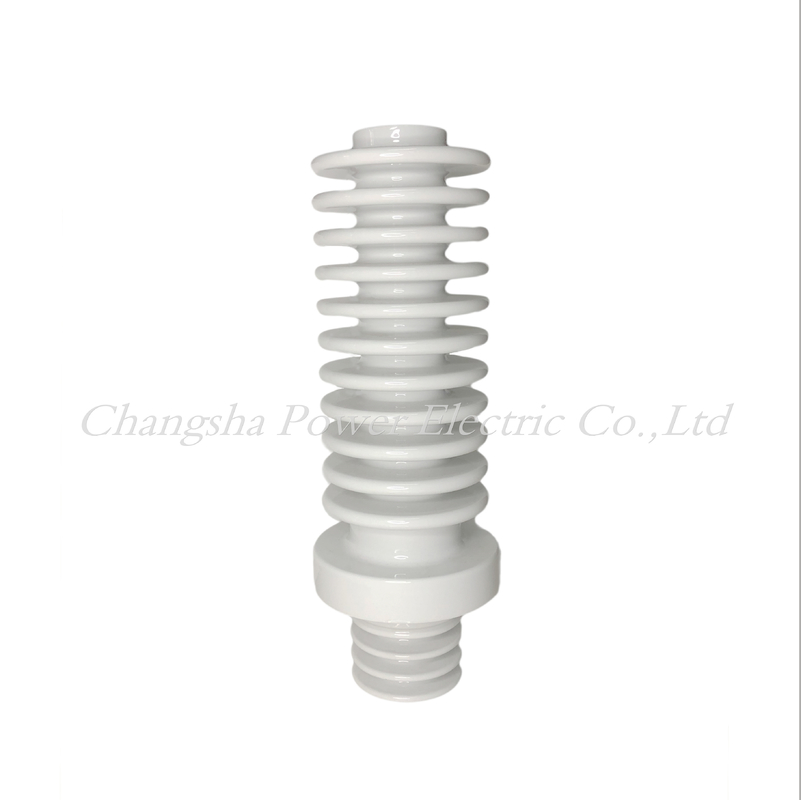

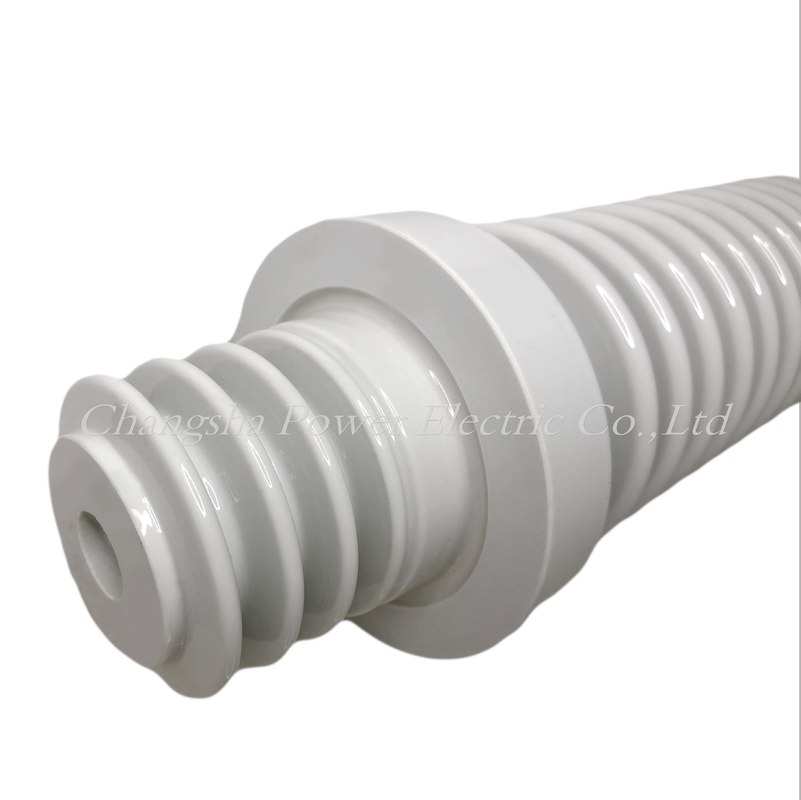

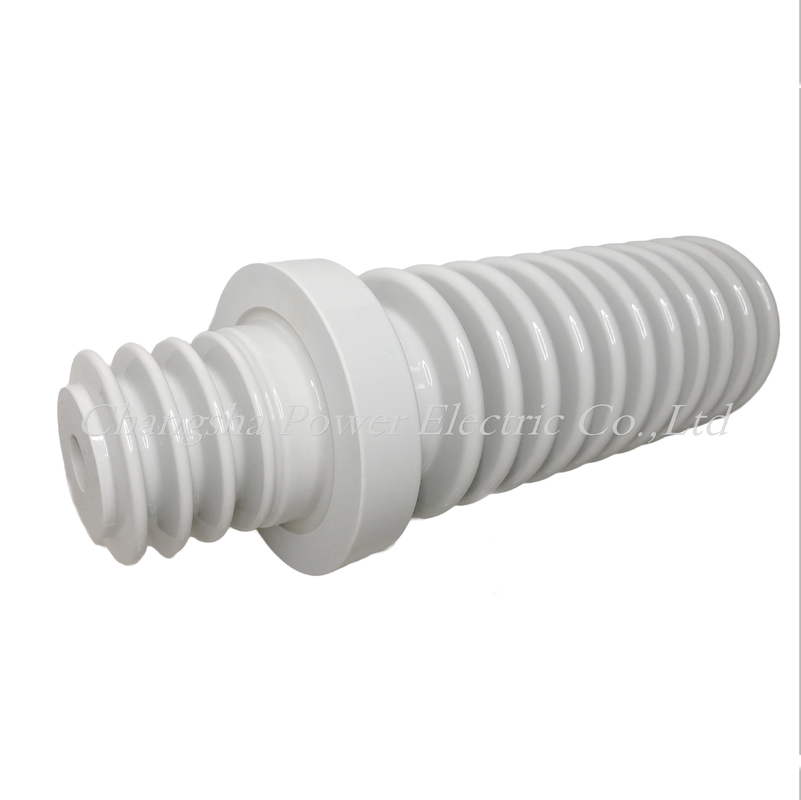

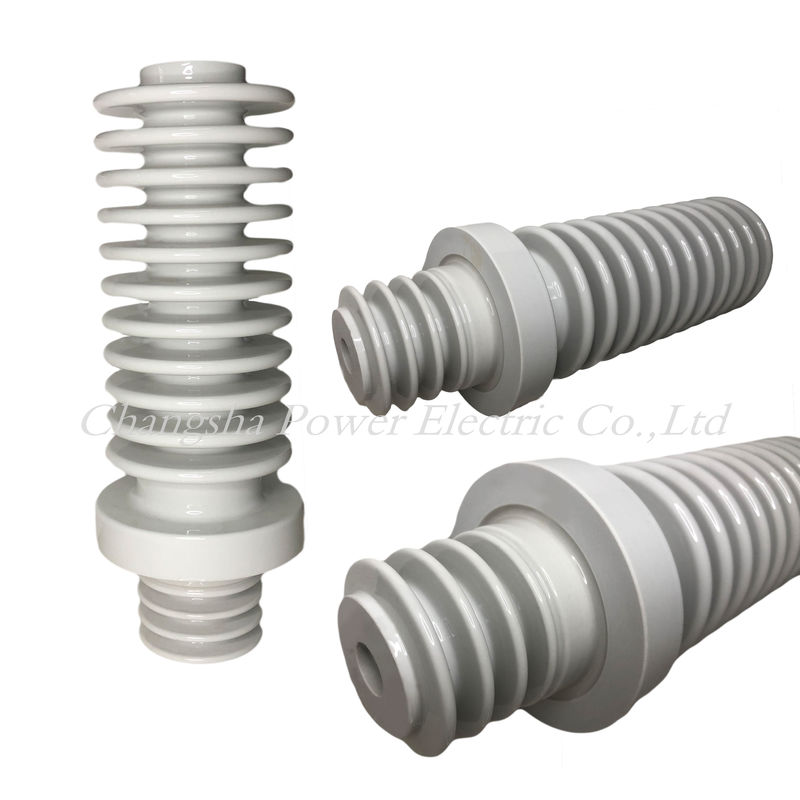

500mm Height White Glazed Gas Insulated Transformer Bushing

500mm Height White Glazed Gas Insulated Transformer Bushing

  • High Light

    Gas Insulated Transformer Bushing

    ,

    White Glazed Transformer Bushing

    ,

    500mm Height Gas Insulated Bushing

  • Color
    White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Gas Insulated Transformer Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    55101
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

500mm Height White Glazed Gas Insulated Transformer Bushing



500mm height IEC Standard White Glazed Gas Insulated Bushing / OEM available





Description:



Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current





Specifications:



Rated voltage ratio (V)

Accuracy class and accuracy class combination

Rated secondary output(VA)

Limited output(VA) Rated insulation level(Kv) Rated secondary output(VA) Surface creepage distance(mm)
Once fuse(A) Auxiliary winding Rated voltage factor Porcelain bushing creepage distance(mm) Frequency(Hz) Altitude(m)
Discharge capacity(MVar) Rated primary current I1n(A) Double transformation ratio Single transformation ratio

Thermal current/1s(Ka effect value)

Ith/1s(Ka r.m.s)

Dynamic stable current Idyn(Ka peak)
Ampere-turn Residual voltage winding accuracy class and Rated burden(VA)





Applications:



Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.





Competitive Advantages:



1. we offer 1 years up to 2 years quality guarantee for our product .

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available .
