IEC White Glazed Porcelain C-110 SF6 Gas Insulated Bushing

IEC White Glazed Porcelain C-110 SF6 Gas Insulated Bushing

  • High Light

    SF6 Gas Insulated Bushing

    ,

    IEC Porcelain Gas Insulated Bushing

    ,

    IEC White Glazed Porcelain Bushing

  • Color
    White
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Gas Insulated Transformer Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    15kV
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

IEC White Glazed Porcelain C-110 SF6 Gas Insulated Bushing

White glazed / IEC Gas Insulated Porcelain Bushing / Thailand / Korea





Applications:

The SF6 gas insulated automatic recloser is designed for a use on overhead distribution lines as well as distribution substation applications.





Description:

Rated voltage(kV) 12(15) 24(25.8, 36(38)
Rated current(A) 630 630 630/800
Rated power frequency withstand voltage(kV) 50 60 70
Rated lightning impulse withstand voltage(kV) 110 150 170
Rated short-time current(kA, RMS)   12.5/16
Rated symmetrical interrupting current(kA,RMS)   12.5/16
Rated short circuit makig current(kA, peak)   32.5/42
Minimum operating curreent(A) Phase 20~630A(step:5A)
  Ground 10~315A(step: 5A)
Operating Mechanism   10,000
Weight(kg) 160 190 280
Applied Standard   IEC 62271-100

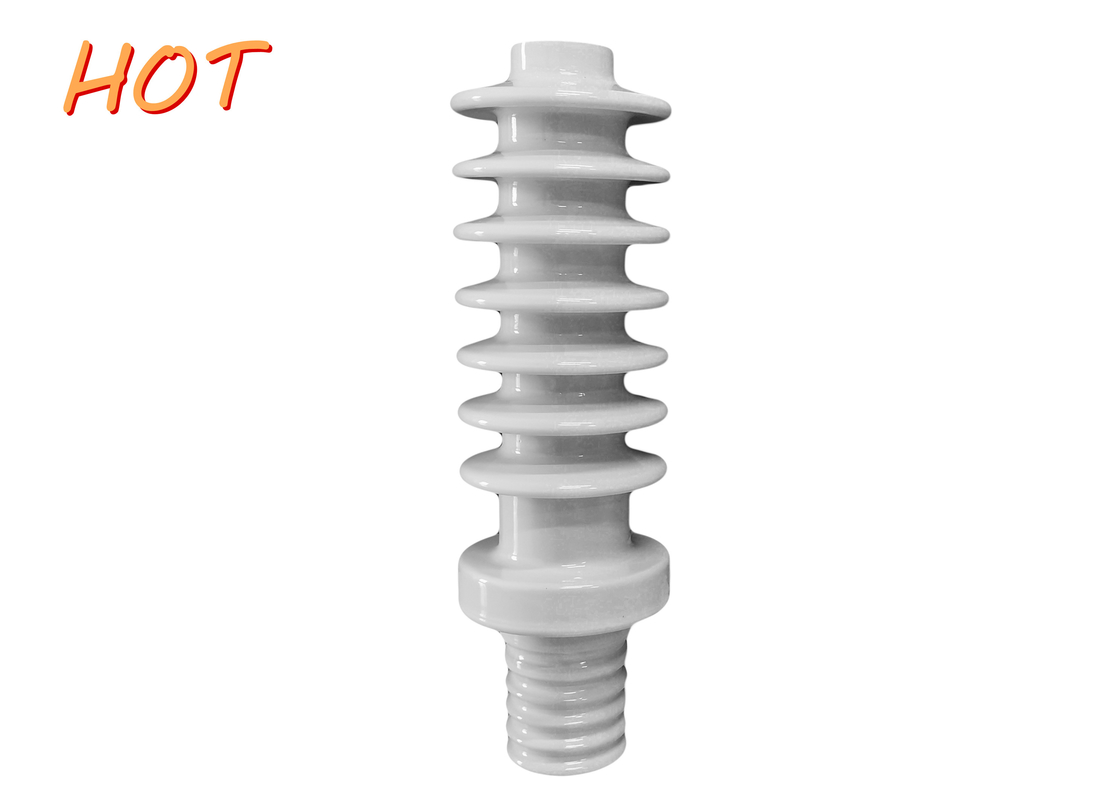

IEC White Glazed Porcelain C-110 SF6 Gas Insulated Bushing 0

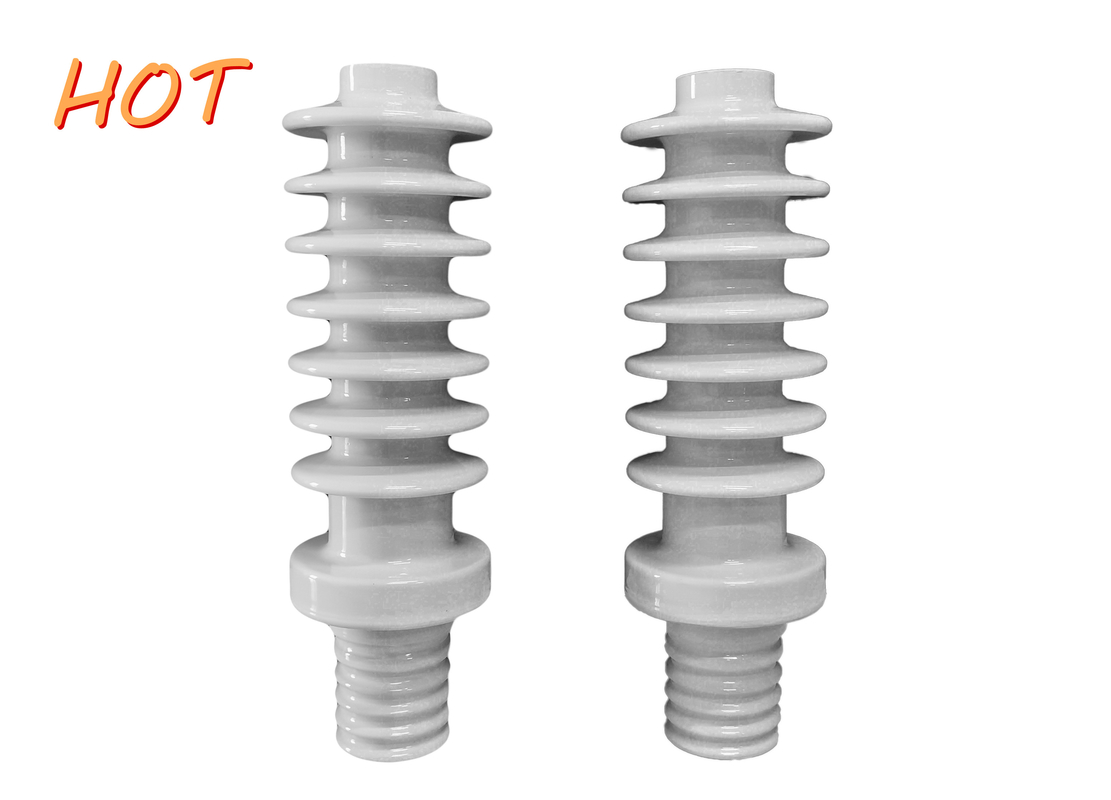

IEC White Glazed Porcelain C-110 SF6 Gas Insulated Bushing 1

Competitive Advantage:

1. Our products price are very competitive. At the same time , the product provide high quality character.

2. That is the reason why we export huge quantity such product to all over the word .

3. we also offer assembly instruction , if the end user has any question during using.

4. we will provide related instruction free of charge .




Feature:
* High mechanical strength with much lower of deflection;

* Excellent performance of anti-pollution;

* Long lifetime is guaranteed;

* Maintenance expenditure is reduced to a minimum;







We are a manufacturer who has over 10 years of experience to research, produce and export various kinds of lightning arrester(Metal oxide), composite insulator, drop-out fuse cutout and disconnecting switch, over-voltage protector, resistance slice, discharging counter etc.
Please consult our website, If you are interested in our products, please do not hesitate to contact us. Thanks!
