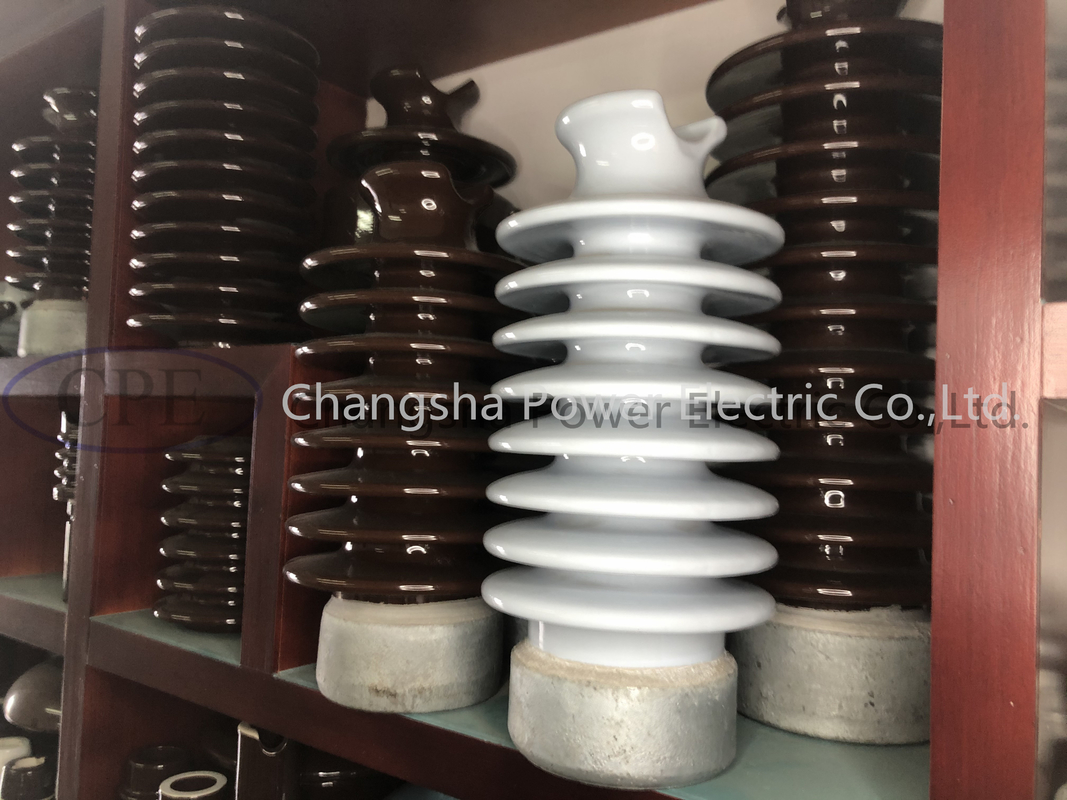

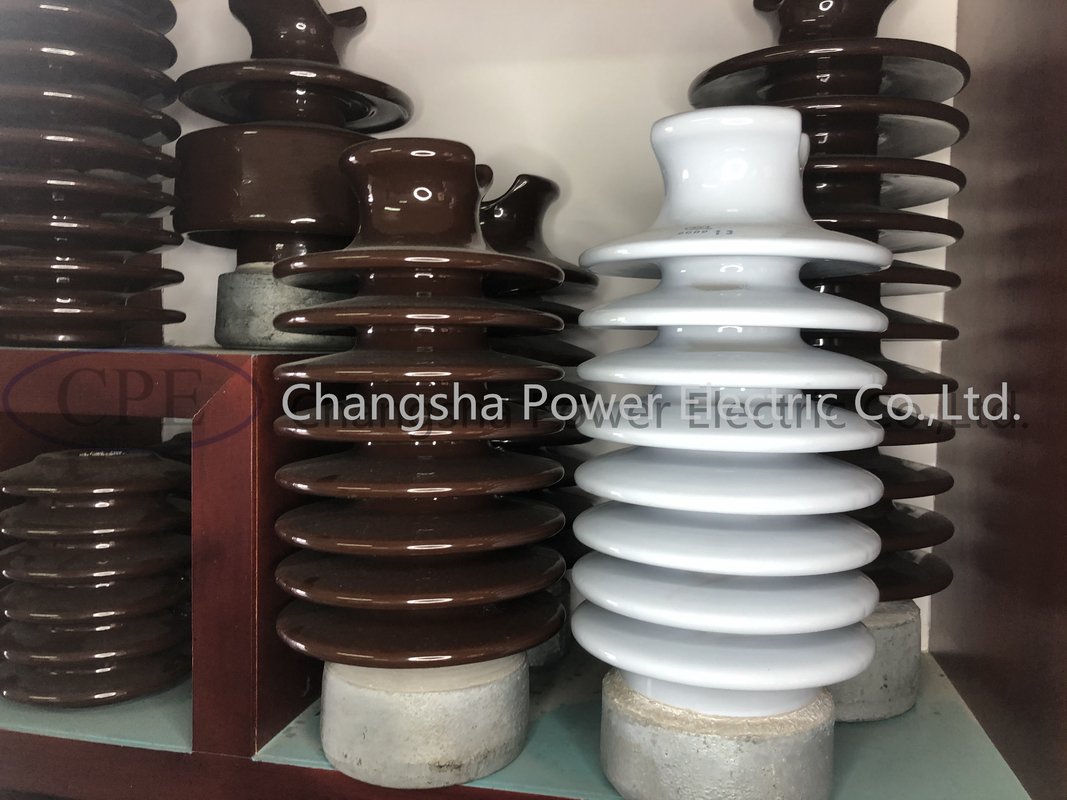

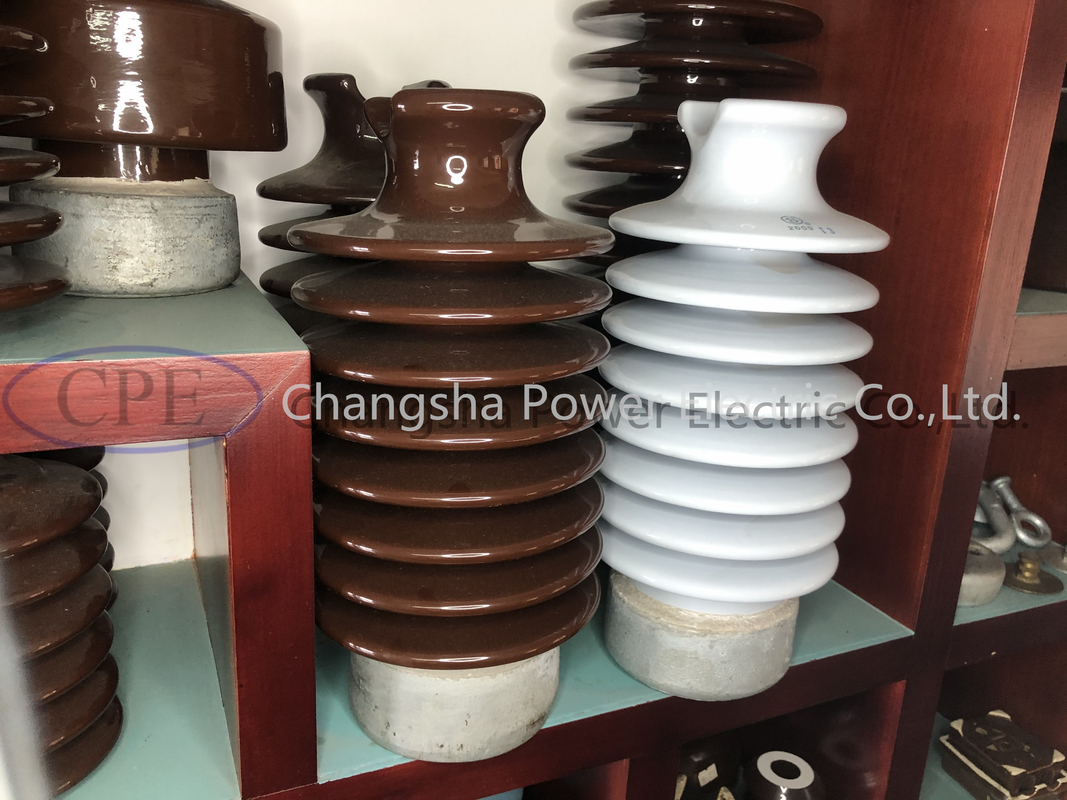

Professional F Neck Ansi 57-3 Line Post Porcelain Insulators / Used For U.S.
Description:
Line post porcelain insulators shall conform in all respects to the requirements of ANSI standard. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed. If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973). Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.
Specifications:
| Technical Data Sheet | ||||||||
| ANSI CLASS | Creepage distance (mm) | Dry arcing distance (mm) | cantilever strength (kN) | Lower frequency flashover voltage(kV) | Critical impulse flashover voltage(kV) | Test voltage to ground (kV) | ||
| Dry | Wet | Positive | Negative | |||||
| 57-33 | 737 | 311 | 12.5 | 125 | 95 | 200 | 260 | 30 |
Applications:
ANSI 57-2S Line post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events. Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.
Features:
Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
Pre-sales service:
Choose the proper reactor type
Installation recommendations and to provide technical information
Satisfied users of the special design requirements
After-sales service:
Offer professional equipment installation instructing
Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
Our products are sold all over the world, you can rest assured.
