Descriptions:

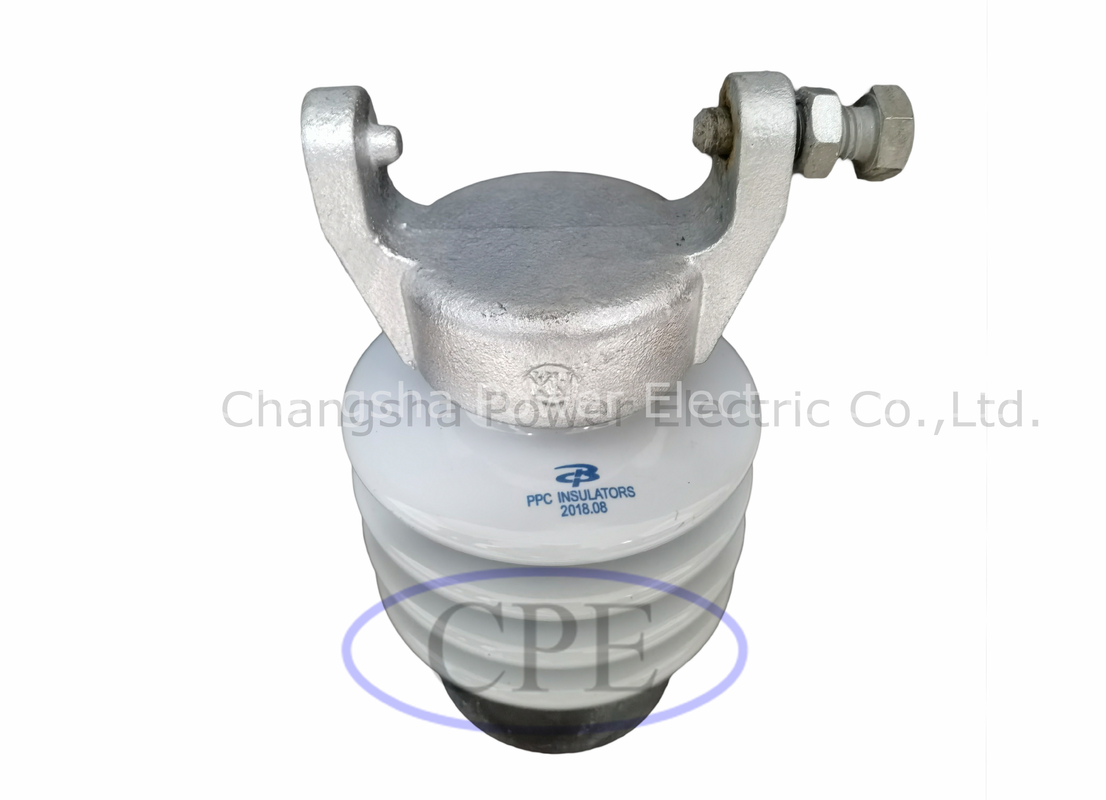

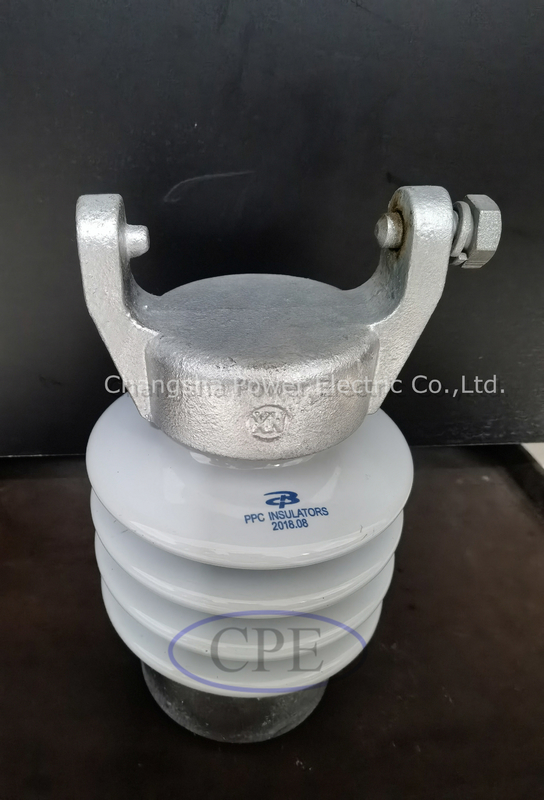

Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.
Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.
Either chocolate brown or Munsell gray glaze is available. caps and flanges are ferrous, hot dip galvanized. thread holes are proper tapped.
specification:
| DIN 42531 | Height(mm) | Creepage distance (mm) | Power frequency withstand voltage(kV) | Lightning impluse withstand voltage(kV) | Weight(kg) |
| 30NF250 | 485 | 600 | 70 | 170 | 6.6 |
Competitive advantages:
Low loss.
Low temperature rise.
Outstanding crack resistance.
Low thermal expansion coefficient.
High mechanical strength, strong weather ability.
Convenient transportation and flexible installation.
Stainless steel flange low magnetic inductivity high resistivity.
Reasonable insulation structure high reliability of inter-turn insulation.
Our products are sold all over the world, you can rest assured.
