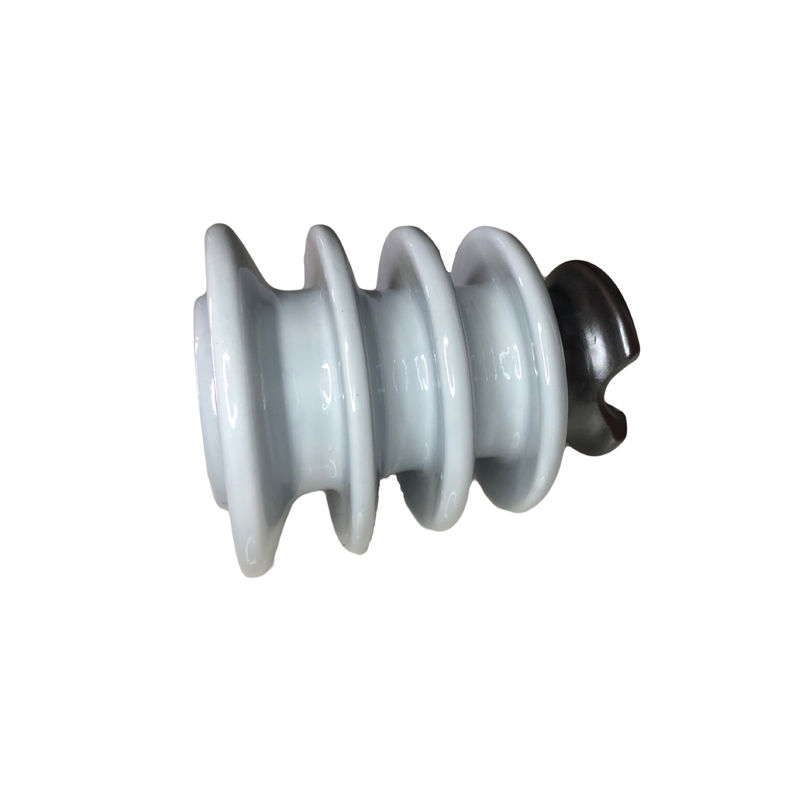

Line Post For Distribution Lines INK20 Iron Hot Deep Galvanizd
Description:
Line post porcelain insulators shall conform in all respects to the requirements of ANSI standard. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed. If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973). Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.
Specifications:
| Dimensions in mm |
| type | H | B | h. | a | c | d | e | m |
| INK 20 | 305 | 170 | 108 | 51 | 75 | 21 | 77 | 24 |
Applications:
Horizontal and gain-base line post insulators are often used in applications to avoid the need to install a cross-arm on the pole.
Features:
Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
Our products are sold all over the world, you can rest assured.
