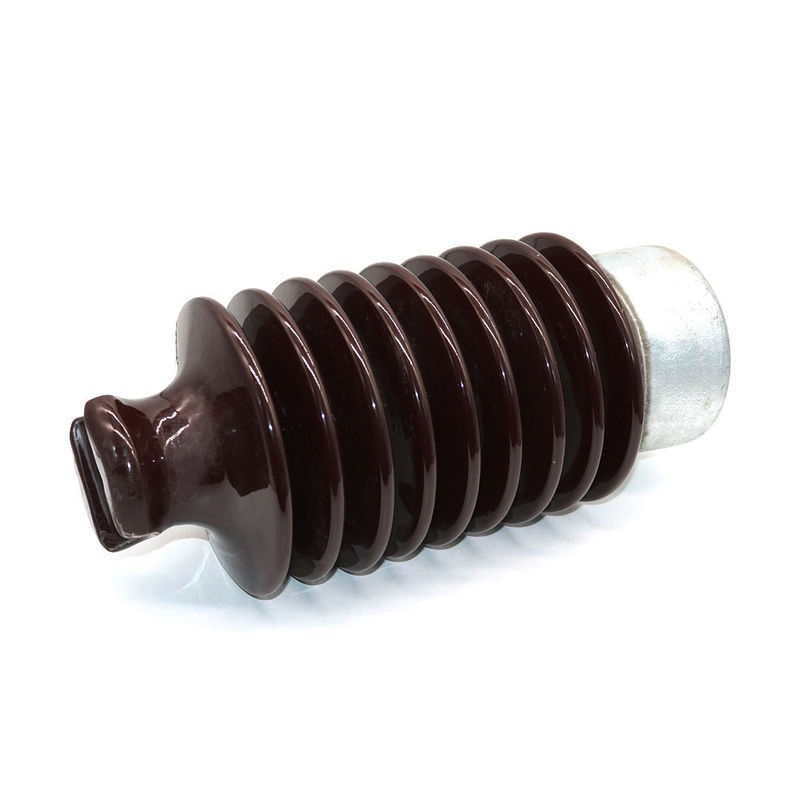

OEM Available ANSI57 Series Line Post Type Porcelain Insulator Glazed F Neck

1. Line post insulators shall conform in all respects to the requirements of ANSI standard.

2. The insulators shall be made of good commercial-grade wet-process porcelain.The entire surface of the insulator, with the exception of a firing surface, shall be glazed.If gray is required, it shall be in accordance with ANSI Z55.1-1967 (R1973).

3. Metal parts shall be made of a good commercial grade of malleable iron, ductile iron, steel, or
aluminum. Ferrous parts, other than stainless steel, shall be galvanized in accordance with ASTM A153.

1.Creepage distance: 559mm
2.Cantilever strength: 12.5kN
3. Low frequency flashover voltage: Dry: 100kV Wet: 70kV
4. Critical impluse flashover voltage: Positive: 160kV Negative: 205kV
5. Radio Influence voltage: Test voltage to ground: 22kV

Choose the proper reactor type

Installation recommendations and to provide technical information

Satisfied users of the special design requirements

Offer professional equipment installation instructing

Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
