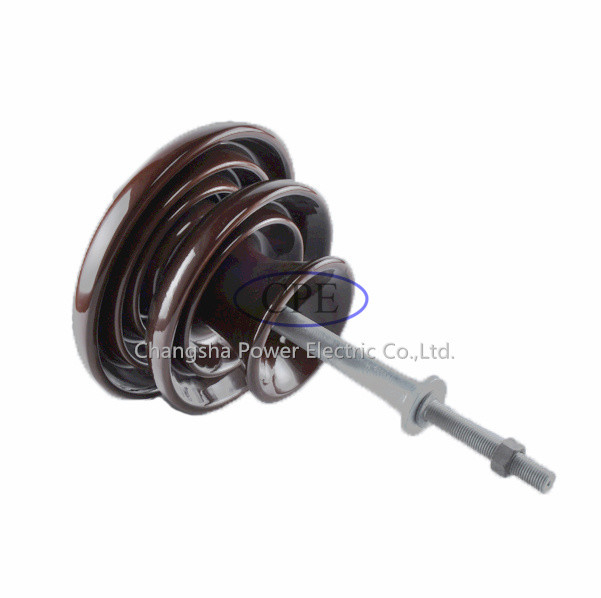

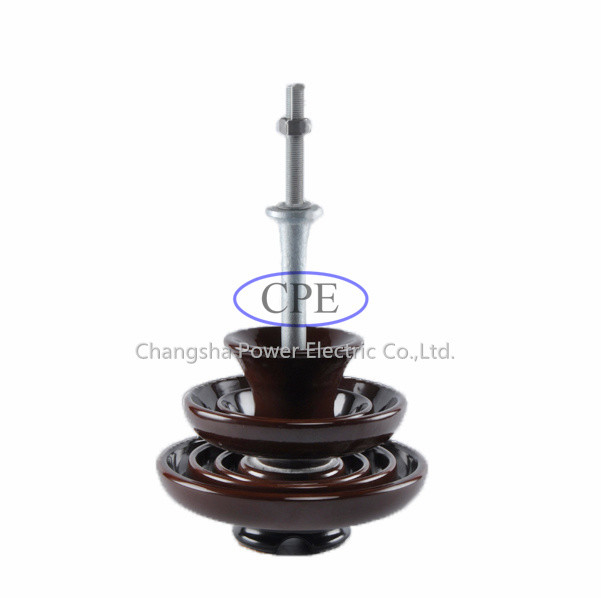

33kv P-33-Y Brown Porcelain Pin Insulators For Distribution Lines

33kv P-33-Y Brown Porcelain Pin Insulators For Distribution Lines

  • High Light

    Brown Porcelain Pin Insulators

    ,

    Distribution Lines Porcelain Pin Insulators

    ,

    33kv Pin Type Insulator

  • Color
    Blue
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Spool Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    33kv P-33-Y
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

33kv P-33-Y Brown Porcelain Pin Insulators For Distribution Lines



33kv P-33-Y Porcelain Pin Insulators For Distribution Lines brown pin type insulator



specification:

Name

P-11-Y

P-33-Y

P-36-Y

Creepage distance (mm)

254

630

900

Cantilever strength (kn)

11

11

10

Type application voltage KV

11

33

36

Power frequency dry flashover voltage kv

75

135

160

Power frequency wet flashover voltage kv

45

85

110

Impluse flashover voltage,postive kv

110

185

190

Impluse flashover voltage,negative kv

110

205

200

Power frenquncy puncture voltage

135

185

200

Net weight kg

1.8

11.5

12.5

33kv P-33-Y Brown Porcelain Pin Insulators For Distribution Lines 0





Descriptions:

Porcelain insulators are the traditional choice for distribution and transmission line, busbar and apparatus insulation.

Manufactured from high-quality non-porous electrical porcelain, they provide long life and cost-effective solutions for a majority of applications.





Features:

  1. good service and quality
  2. competitive price
  3. large production capacity
  4. delivery on time
  5. accept customers' design





Competitive Advantages:

  1. we offer 1 years up to 2 years quality guarantee for our product .
  2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.
  3. OEM design are available .
  4. We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specifications .
