11kv Semi Pin Type Porcelain Insulator Oem Available Brown Color

11kv Semi Pin Type Porcelain Insulator Oem Available Brown Color

  • Highlight

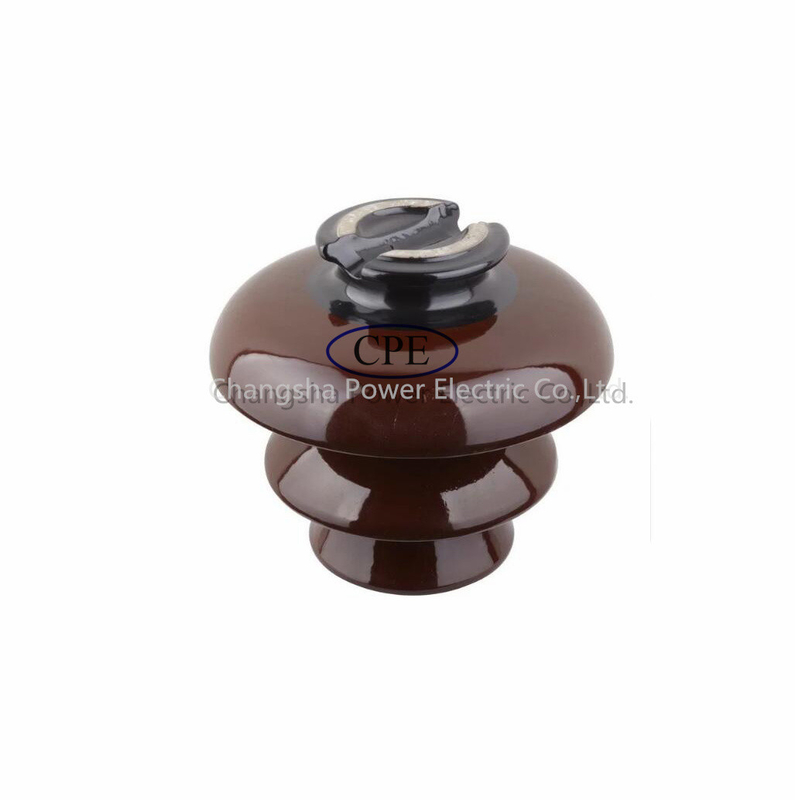

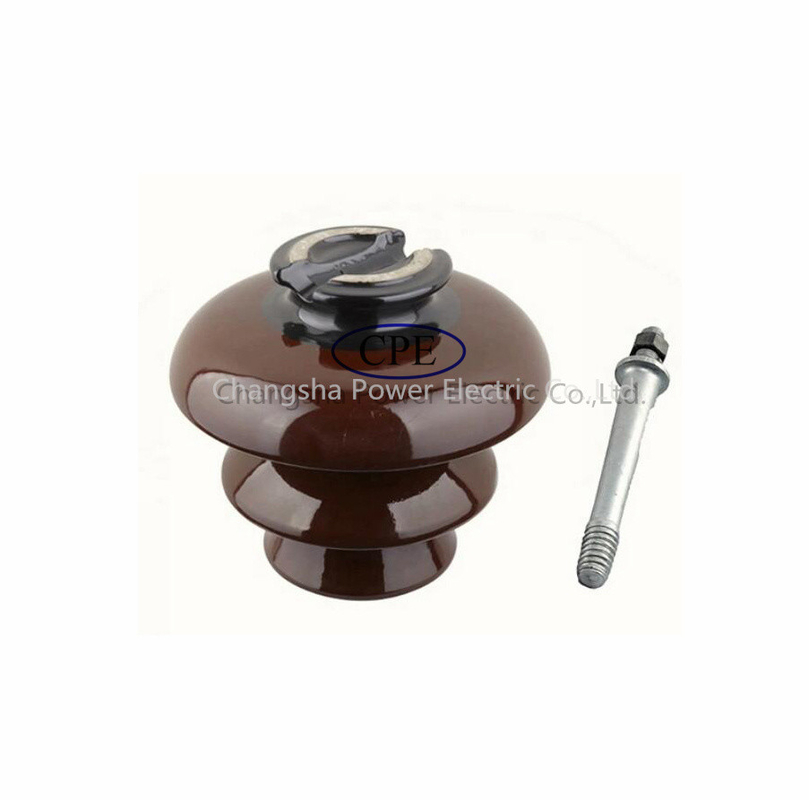

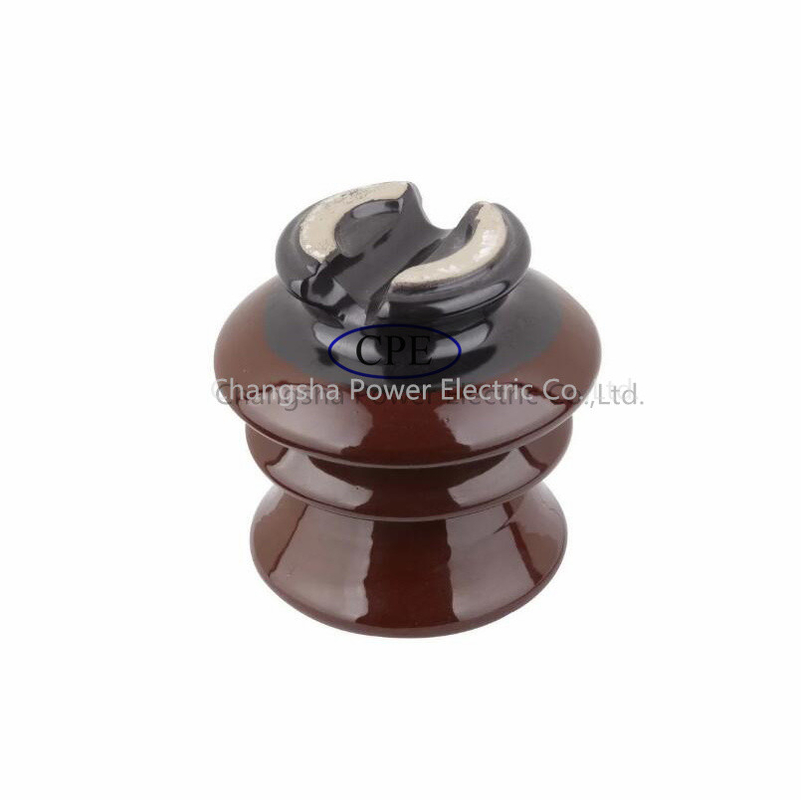

    Semi Pin Type Porcelain Insulator

    ,

    Oem Brown Pin Type Porcelain Insulator

    ,

    11 Kv Pin Insulator

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Pin Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    P-11-Y
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

11kv Semi Pin Type Porcelain Insulator Oem Available Brown Color



11kv Semi Pin Type Porcelain Insulator Oem Available Brown Color





Description:



Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.





Specification:

Cat. No     16007 16008 16009 16010
Type     P-11-Y P-15-Y P-20-Y P-33-Y
Figure No.     1 1 2 3
Main Dimensions H   133 137 165 244
(mm) h   48 48 52.63 52.63
  D   140 152 230 279
  d   18.29 18.29 27.78 27.78
  R1   13 13 19 19
  R2   9.5 12.7 14.3 13
Nominal voltage (kV)     11 15 22 33
Creepage distance (mm)     240 300 432 675
Minimum flashover Power frequency Dry( kV) 75 80 100 135
voltage   Wet(kV) 45 55 60 85
  50%Impulse Positive (kV) 100 130 160 185
    Negative kV 110 175 205 220
Withstand voltage One minute power frequency Dry (kV) 65 70 90 110
    Wet (kV) 40 50 55 90
  Impulse dry withstand (kV)   80 110 150 170
Radio influence voltage data Test voltage to Ground (kV)   15 15 22 30
  Maximum RIV at 1000kHz (μV)   8000 8000 12000 16000
Power frequency puncture voltage (kV)     135 150 145 185
Cantilever failing load (kN)     11 11 10 13.8
Weight (kg)     1.8 2 5 11.5
Applicable Standard: BS137





Competitive Advantages:



1. we offer 1 years up to 2 years quality guarantee for our product.

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available.

4. We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specifications. Porcelain glaze can be made as colour brown, light gray ,white or blue.
