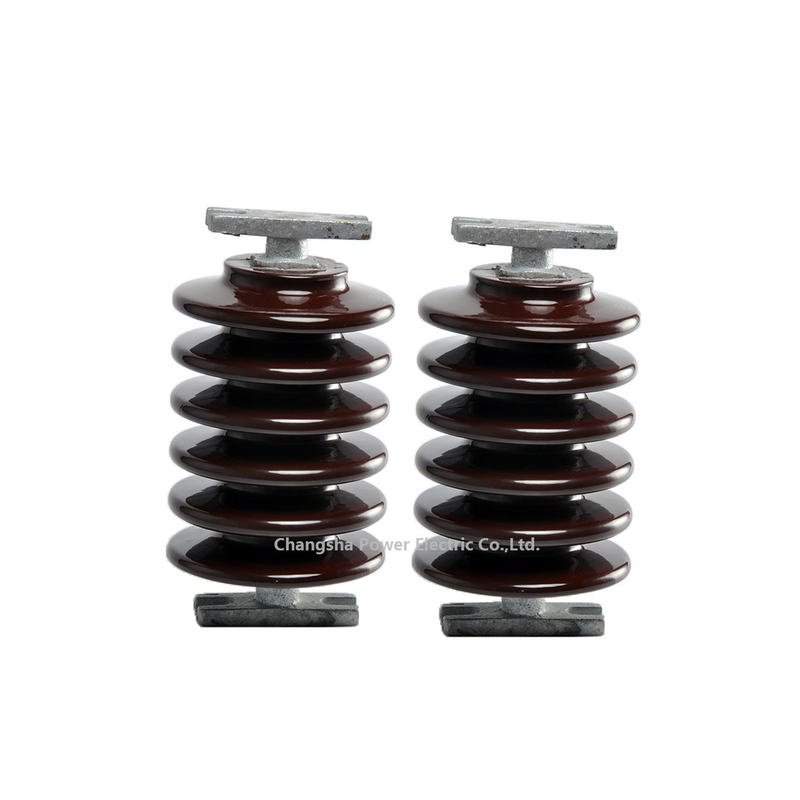

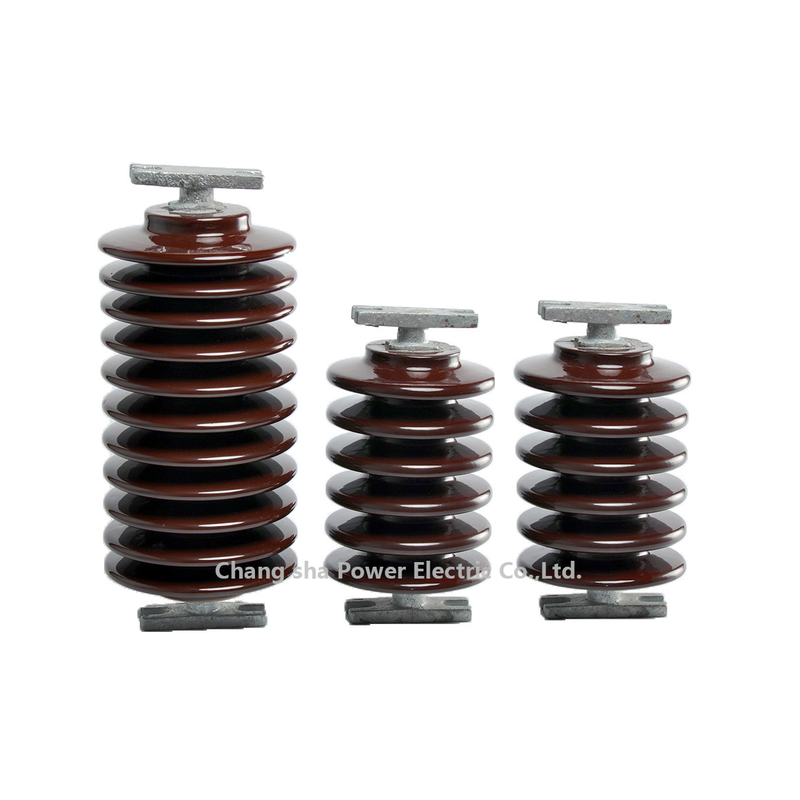

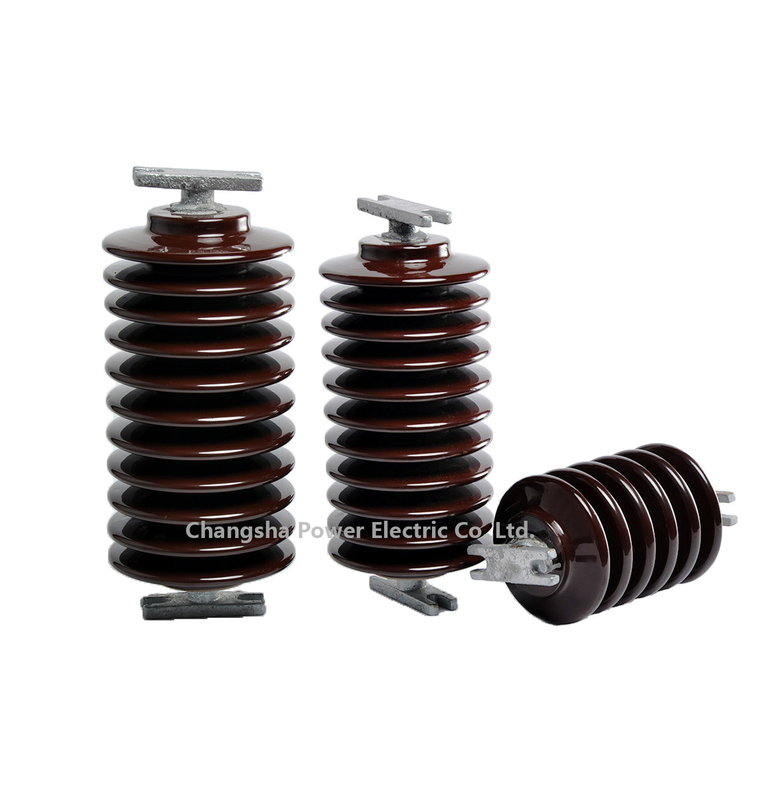

P-80 High Voltage Outdoor Post Porcelain Insulator
Specifications:
Post insulator normal disconnector |
||||
Type | P-13 | P-70 | P-80 | |
Diameter(D) | mm | 160 | 140 | 113 |
High(H) | mm | 380 | 254 | 310 |
Leakage distance (Creepage distance) | mm | 1000 | 500 | 400 |
Cantilever strength | kn | 2.3 | 3.6 | 2.7 |
Rated voltage | kv | 33 | 22 | 24 |
Full wave impulse flashover oltage | kv | 230 | 140 | 145 |
Wet power frequency flasho er voltage | kv | 95 | 70 | 70 |
Net weight | kg | 9.6 | 6.2 | 4.8 |
Applications:
ANSI 57-2S Line post insulators are designed to provide rigid support of conducting cable while offering the maximum resistance to damage from electrical or mechanical events.
Features:
Our porcelain insulators are manufactured using a wet porcelain process and cured in an environmentally controlled production facility to ensure a complete and even cure of the porcelain while also resulting in the highest quality surface finish.
Pre-sales service:
Choose the proper reactor type
Installation recommendations and to provide technical information
Satisfied users of the special design requirements
After-sales service:
Offer professional equipment installation instructing
Provide spare parts for wearing parts(such as post insulator, bolt, etc.)
