DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed

Products - Transformer Porcelain Bushing
  • High Light

    30kV 250A Transformer Porcelain Bushing

    ,

    Brown Glazed Transformer Porcelain Bushing

    ,

    DIN Standard Power Transformer Bushing

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    DIN42531
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    30NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed

  • DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed
  • DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed
Get Price Contact Now
Well sold DIN standard 30kV250A Transformer Porcelain Bushing /Brown glaze


Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current


Specifications:

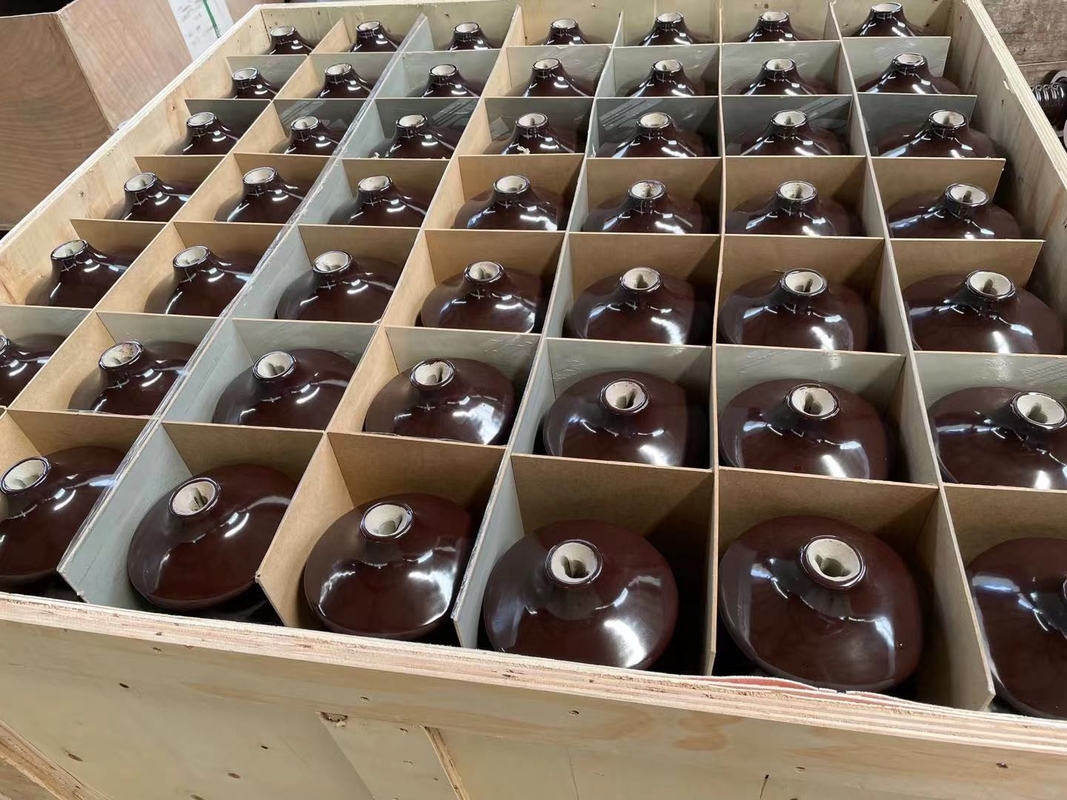

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed 0


1. Creepage distance: 600mm
2. Power frequency withstand voltage: 70kV
3. Lightning impulse withstand voltage: 170kV
4. Standard: DIN 42531




Competitive Advantage:



1. We offer 2 years quality guarantee.

2. Bushings have excellent performance due to many years' exporting experience.

3. OEM design available upon customer’s requirement or special technical specifications.

4. Our bushings are well packed with inner cartons and ourter wooden case.

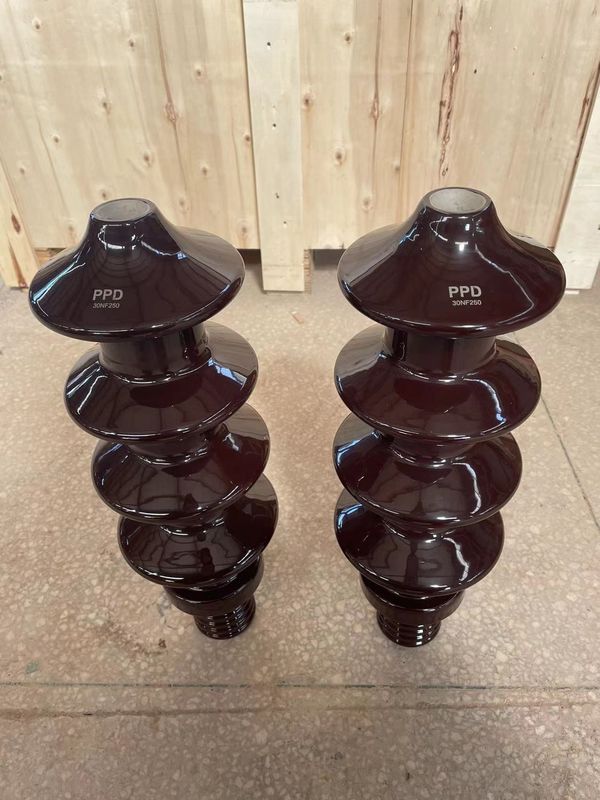

DIN Standard 30kV 250A Transformer Porcelain Bushing With Brown Glazed 1
