20NF250 Porcelain Electrical Insulators With Bright Brown Glazed Surface

20NF250 Porcelain Electrical Insulators With Bright Brown Glazed Surface

  • High Light

    20NF250 Porcelain Electrical Insulators

    ,

    Brown Glazed Surface Porcelain Electrical Insulators

    ,

    IEC Electrical Porcelain Transformer Bushing

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    20NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

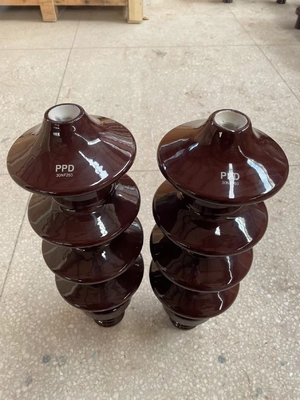

20NF250 Porcelain Electrical Insulators With Bright Brown Glazed Surface

20NF250 Porcelain Transformer Bushing / Bright brown glazed surface / OEM



Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current



Speficication:



DIN 42531 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
20NF250 385 450 50 125 5.1



20NF250 Porcelain Electrical Insulators With Bright Brown Glazed Surface 0





Applications:



The bushings are used for oil type distribution transformer.





Competitive Advantage:



We offer 2-3 years quality guarantee.

Bushings have excellent performance due to many years' exporting experience.

OEM design available upon customer’s requirement or special technical specifications.

Our bushings are well packed with inner cartons and ourter wooden case.
