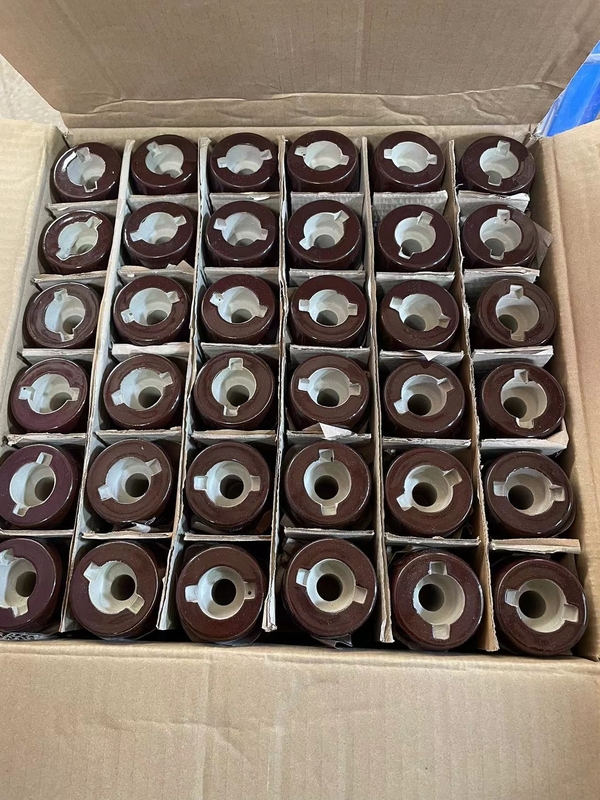

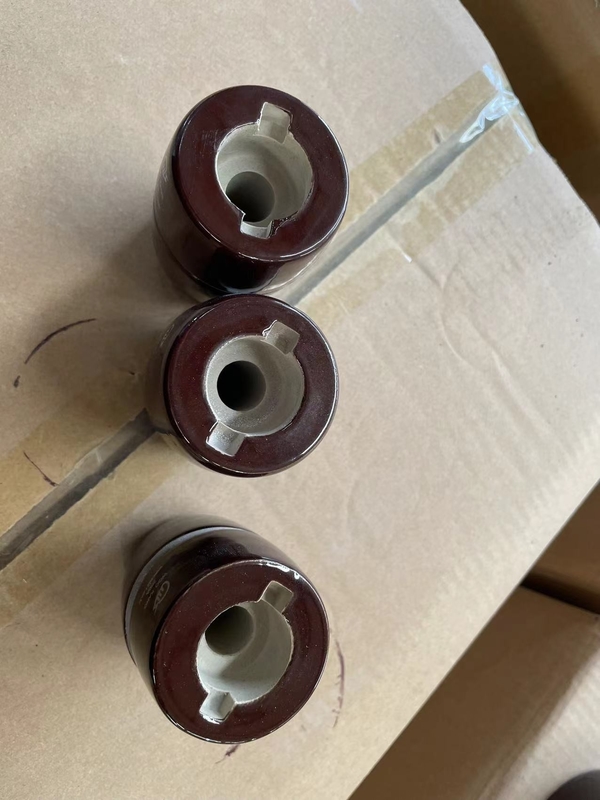

1kV 200A Porcelain OEM Draw Lead Transformer Bushing Brown Glazed

1kV 200A Porcelain OEM Draw Lead Transformer Bushing Brown Glazed

  • High Light

    OEM Draw Lead Transformer Bushing

    ,

    1kV Porcelain Transformer Bushing

    ,

    Transformer Porcelain Bushing 200A

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Sample
    Provided
  • Oem
    YES
  • Size
    Customized Size
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    200A
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

1kV 200A Porcelain OEM Draw Lead Transformer Bushing Brown Glazed



1kV 200A Porcelain OEM Draw Lead Transformer Bushing / Brown glazed





Description:

IEC CLASS Upper height(mm) Lower height(mm) Lower dia.(mm) Color
200A 58 39 46 Brown

The transformer bushing is to lead the high and low voltage leads inside the transformer to the outside of the oil tank, not only as the lead to ground insulation, but also plays a role of fixing the lead.





Applications:



At present,the bushing are mainly configured with copper conductor or aluminum conductor,in which the aluminum conductor is cheaper but with equal performance.





Ordering instructions:



1.If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.





Competetive Advantage:



1. we offer 1 years up to 2 years quality guarantee for our product.

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available.
