Porcelain C-110 Transformer Bushing Insulator DIN Standard

Porcelain C-110 Transformer Bushing Insulator DIN Standard

  • High Light

    Porcelain C-110 Transformer Bushing Insulator

    ,

    DIN Standard Transformer Bushing Insulator

    ,

    Oem Oil Immersed Transformer Porcelain Bushing

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    DIN
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    10NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

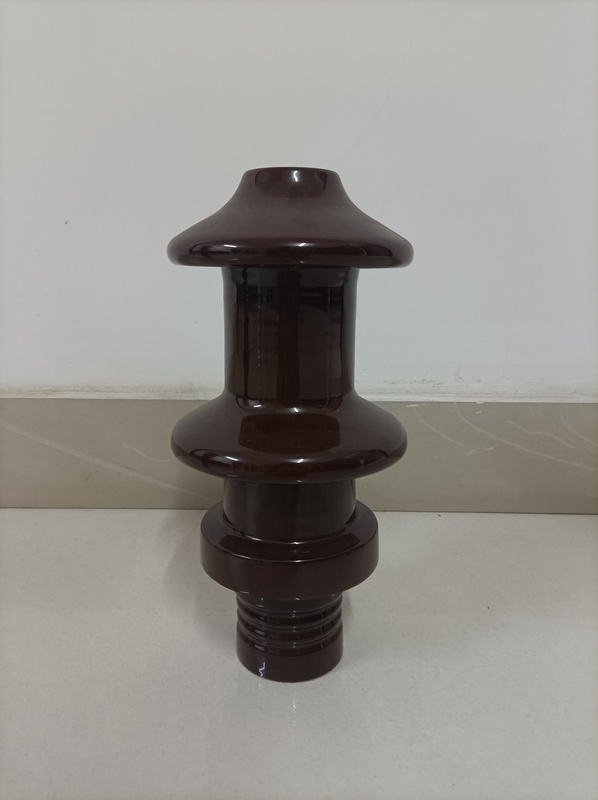

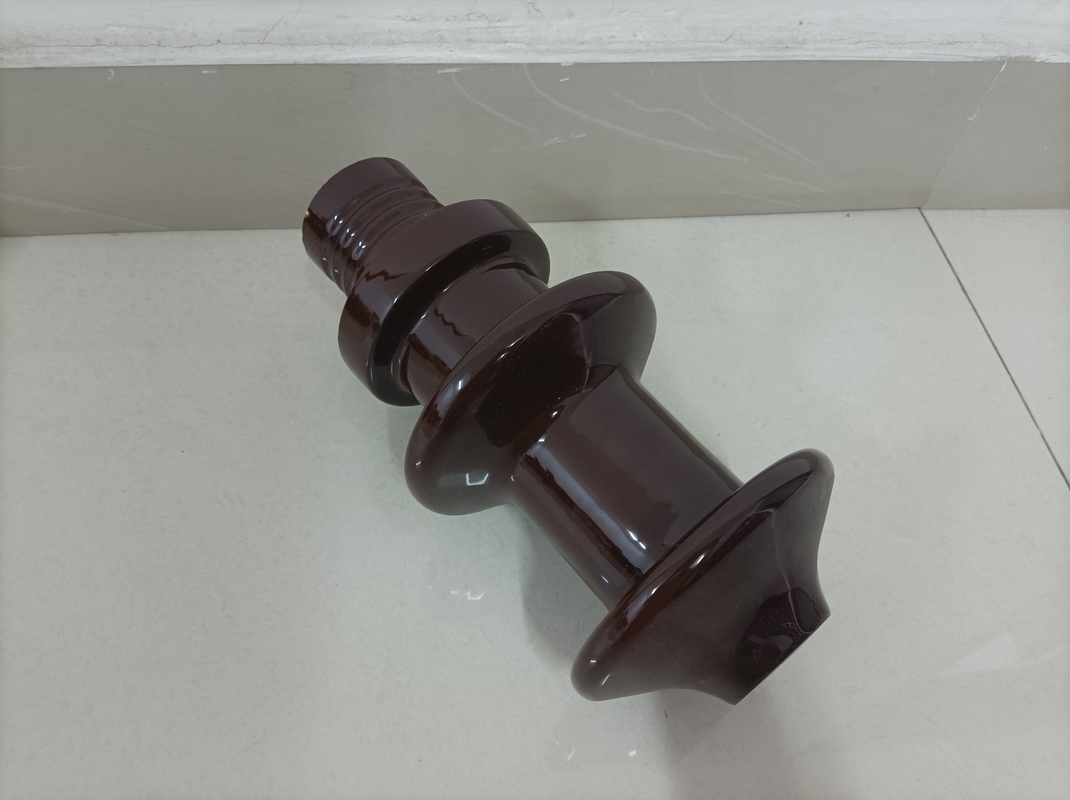

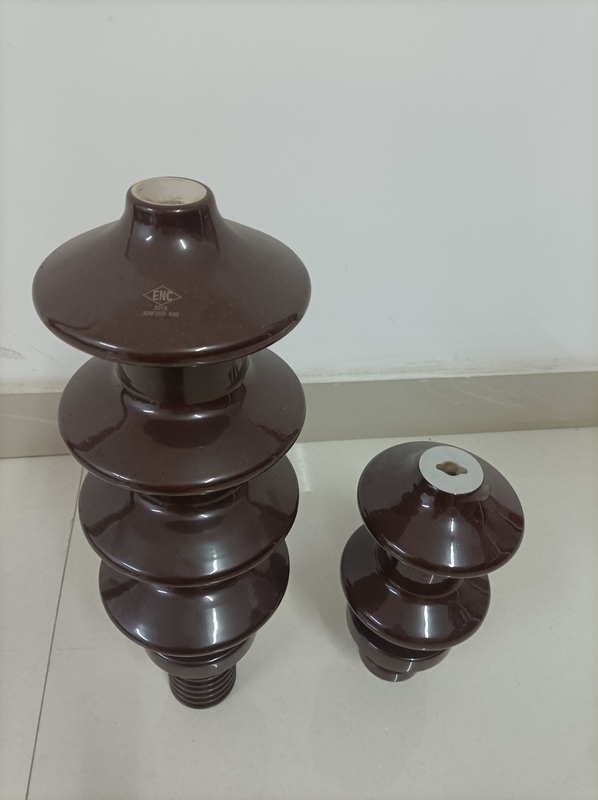

Porcelain C-110 Transformer Bushing Insulator DIN Standard

DT-10NF250 transformer porcelain bushing / brown glazed/ OEM



Description:



DIN 42531 Height(mm) Creepage distance (mm) Power frequency withstand voltage(kV) Lightning impluse withstand voltage(kV) Weight(kg)
10NF250 295 305 28 75 3.2





The transformer sleeve is the main insulating device outside the transformer box. The lead wire of the transformer winding must pass through the insulating sleeve to insulate the lead wire between the lead wire and the lead wire between the transformer shell, and to fix the lead wire at the same time.Due to different voltage levels, the insulation sleeve has pure porcelain sleeves, oil-filled sleeves and capacitive sleeves.





Features:



Our bushing is applied for oil-immersed type transformer, enjoying good reputation among clients from different countries.




Competitive Advantages:



1. The lower end of bushing is protected by porcelain shell which makes the bushing sturdy and prevents the permeation from impurities and moisture.

2. Maintain composure and patience in the face of difficult situations of clients.

3. Training of introduction of equipment are offered according to client's demand.

4. Build up long-term and stable partnerships, and constantly provide high-quality products.

5. Equipment are guaranteed up to one year and an overall after-sales service is provided.

If you want to buy transformer bushings with accessaries, please email or phone us at any time.
