30NF250 Transformer Porcelain High Voltage Bushing Oil Type DIN Standard

30NF250 Transformer Porcelain High Voltage Bushing Oil Type DIN Standard

  • High Light

    Porcelain C110 High Voltage Bushing

    ,

    Transformer High Voltage Bushing

    ,

    170kV Oil Type Porcelain Bushing

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    DIN42531
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    30NF250
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable

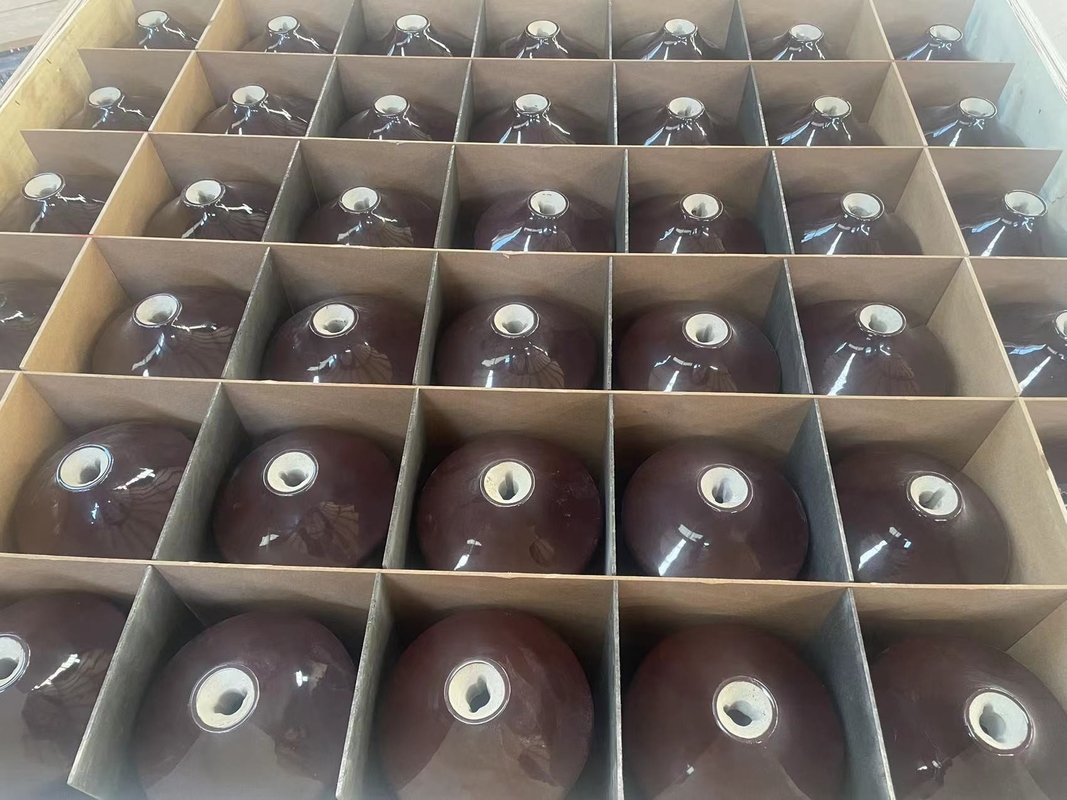

  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

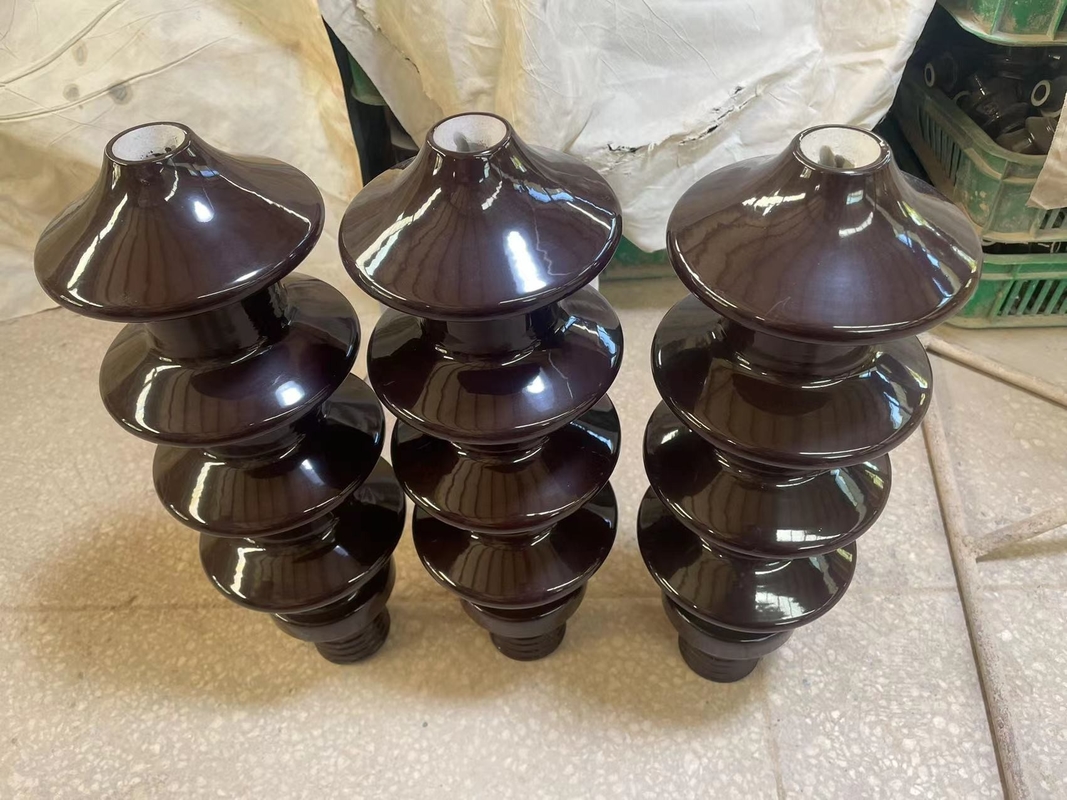

30NF250 Transformer Porcelain High Voltage Bushing Oil Type DIN Standard

DIN standard High voltage oil type 30NF250 transformer porcelain bushing


Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current


Specifications:


1. Creepage distance: 600mm
2. Power frequency withstand voltage: 70kV
3. Lightning impulse withstand voltage: 170kV
4. Standard: DIN 42531


30NF250 Transformer Porcelain High Voltage Bushing Oil Type DIN Standard 0

Competitive Advantages:


1.Efficient and fast responses are pre-requisite.

2.Maintain composure and patience in the face of difficult situations of clients.

3.Training of introduction of equipment are offered according to client's demand.

4.Build up long-term and stable partnerships, and constantly provide high-quality products.

5.Equipment are guaranteed up to one year and an overall after-sales service is provided.
