Description:

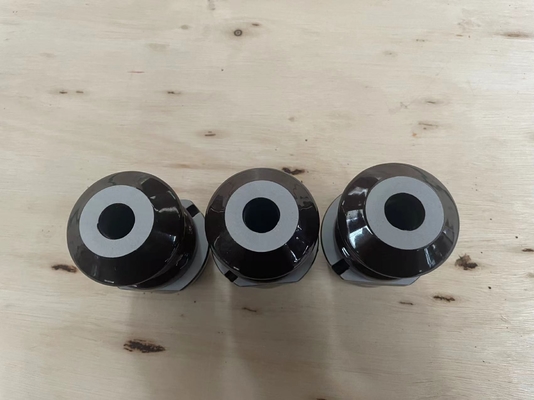

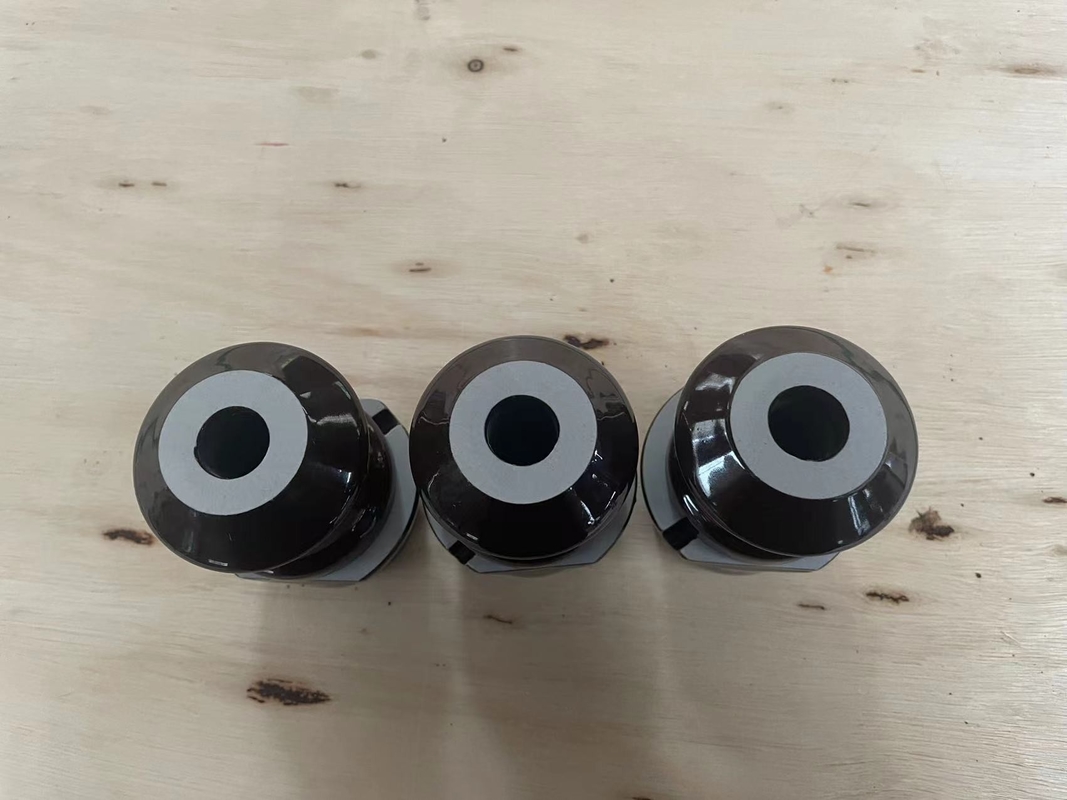

Transformer bushing insulators are applied as a structure, carrying on conductor through a partition such as transformer tank and insulating it, incorporating the means of attached flange to the partition for medium voltage level.
Technical requirents:
1. Glaze color: Brown unglazed part: —·—
2. Creepage distance:70mm
3. Power frequency withstand voltage: 10kV
4. Lightning impulse withstand voltage: 30kV
5. Standard: DIN 42530
Applications:
The bushings are used for oil type distribution transformer.
Competitive Advantage:
1. We offer 2 years quality guarantee.
2. Bushings have excellent performance due to many years' exporting experience.
3. OEM design available upon customer’s requirement or special technical specifications.
Ordering instructions:
1. If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, lengt
of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very
important), environmental pollution level, altitude, environmental temperature.
2. When the user has special requirements, the design can be carried out according to the user's requirements.
Our products are sold all over the world, you can rest assured.
