Professional 53kN ANSI 54-2 Guy Strain Insulator Porcelain

Professional 53kN ANSI 54-2 Guy Strain Insulator Porcelain

  • High Light

    ANSI 54-2 Guy Strain Insulator Porcelain

    ,

    53kN Guy Strain Insulator Porcelain

    ,

    ANSI 54-2 Professional Strain Insulator

  • Color
    Brown, Gra
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Stay Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 54-2
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Professional 53kN ANSI 54-2 Guy Strain Insulator Porcelain

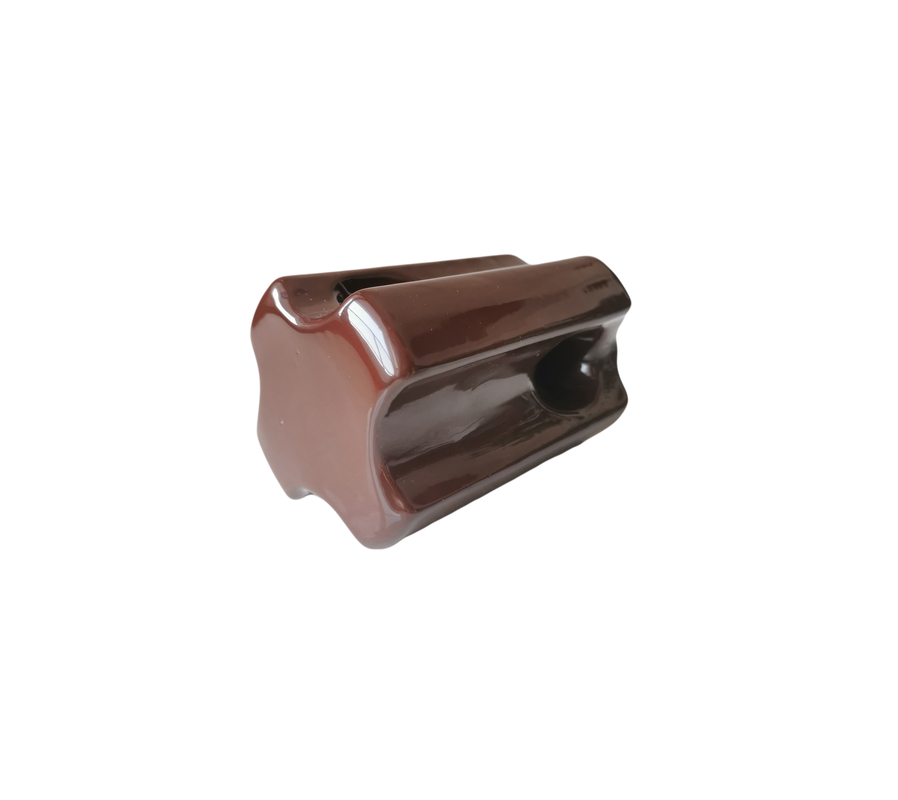

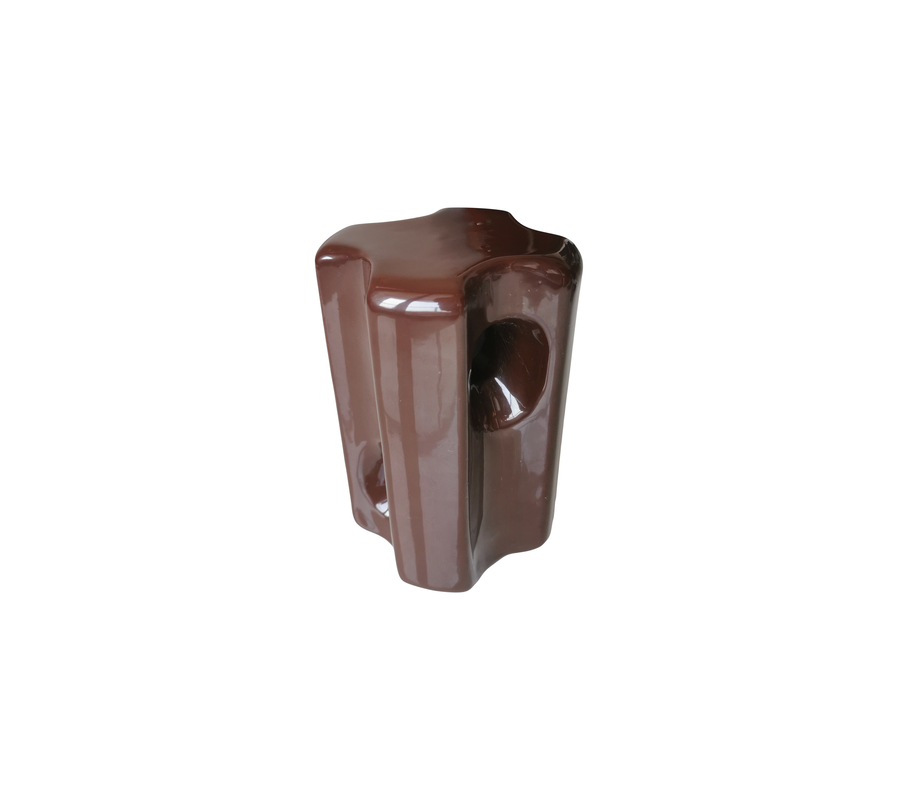

Professional Porcelain Strain Insulator ANSI 54-2 in brown color





Description:



We can supply insulators according to IEC standards, ANSI standards,BS standards or customer specifications .

porcelain glaze can be made as colour brown, light gray ,white or blue . Composite shed colour can be light gray or red. We export huge quantity of such products to Middle East countries . The normal package is wooden box or pallets .





Specification:



1. Creepage distance: 47mm

2. Min. Flashover voltage: Dry: 30kV

                                         Wet: 15kV

3. Mechanical failing load: 53kN





Applications:



ANSI strain porcelain insulators are used for overhead transmission lines.





Competitive advantage:


Our insulators have very good M & E performance , we offer 2 years quality guarantee .

Every units of insulators are tested qualified , to guarantee all insulators are without any defect.

If customer can provide technial data , We will make related insulators design . ​

OEM product are available.
