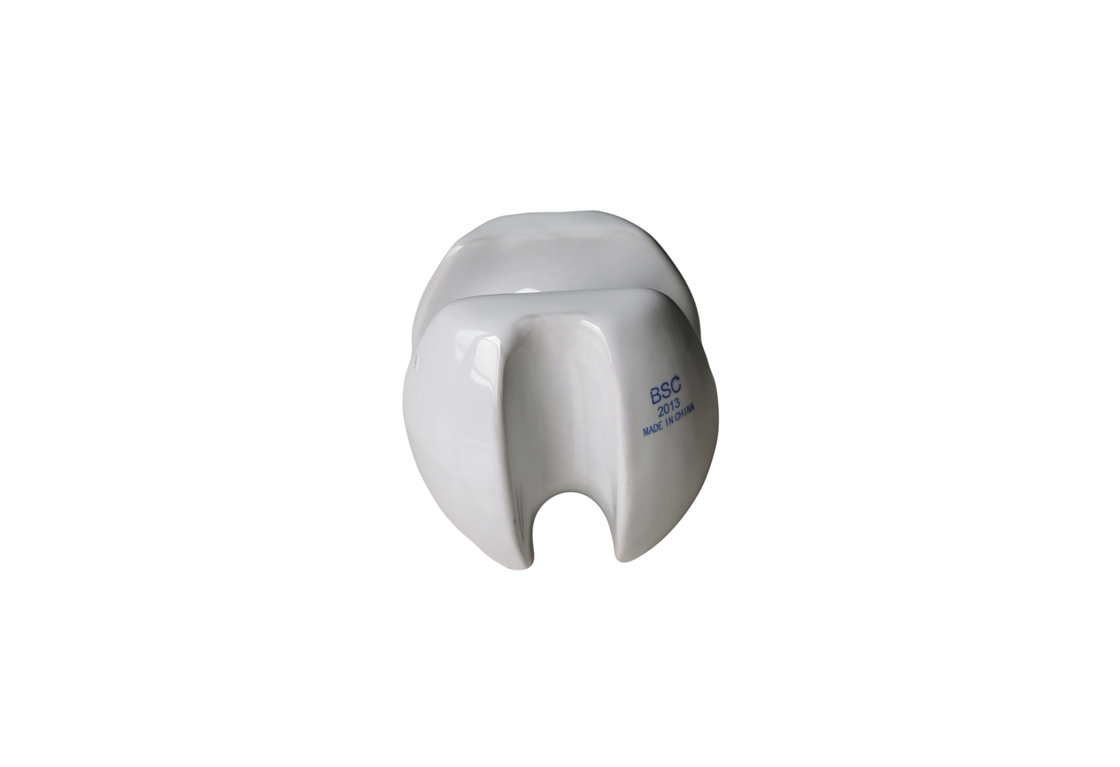

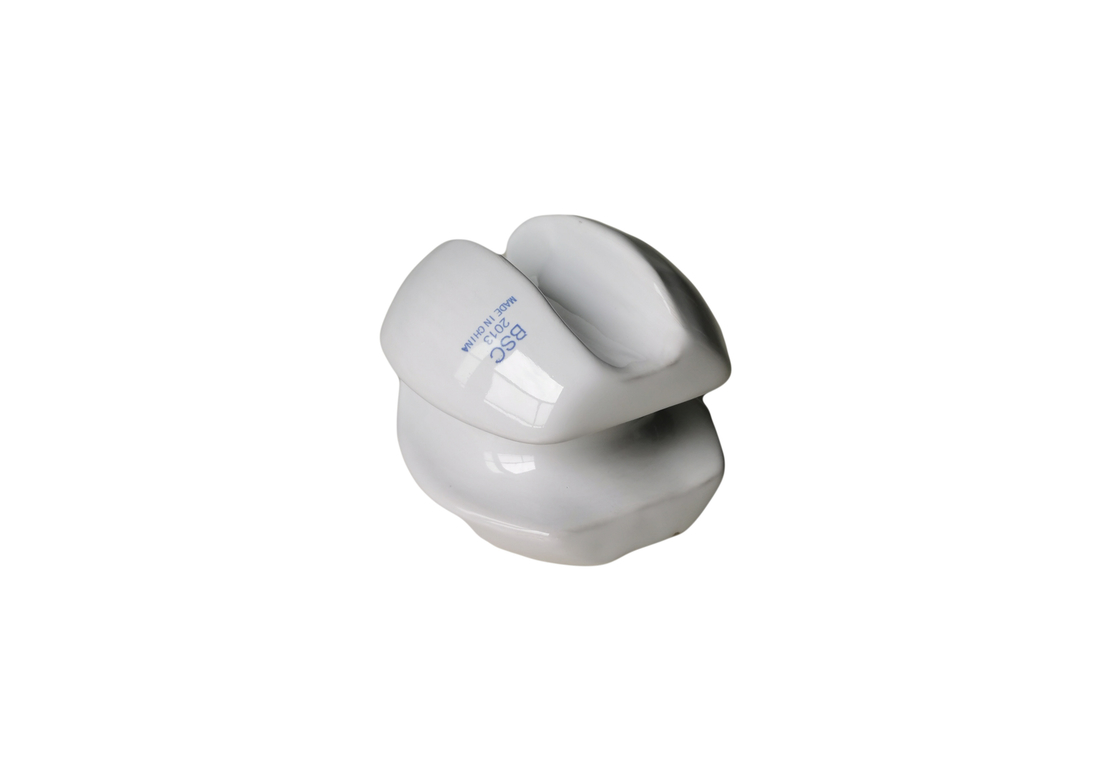

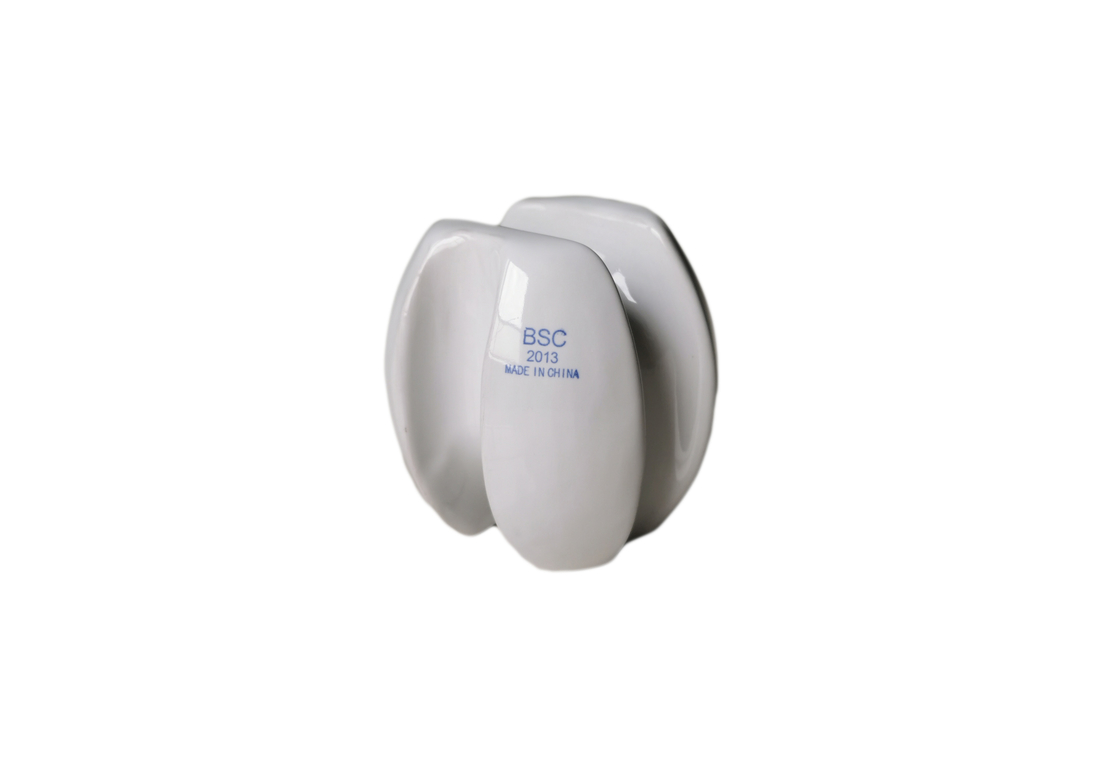

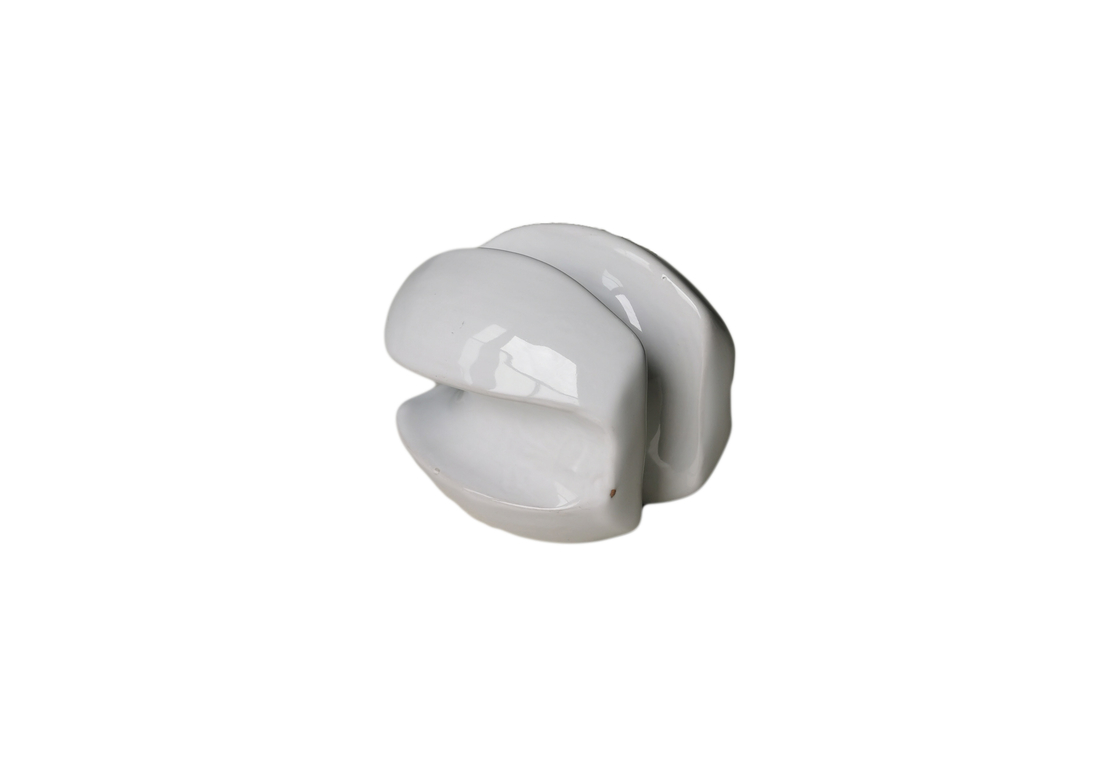

Customerized OEM ANSI Gy4 Stay Type Insulators

Customerized OEM ANSI Gy4 Stay Type Insulators

  • High Light

    ANSI Gy4 Stay Type Insulators

    ,

    OEM Stay Type Insulators

    ,

    ANSI Gy4 Customerized Stay Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Strain Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Customerized OEM ANSI Gy4 Stay Type Insulators



Customerized Porcelain Strain Insulators / light gray glaze / OEM available





Description:



ANSI CLASS Tensile strength (kN) Wet power frequency flashover voltage 50HZ(kV) Height (mm) Weight (kg)
Gy4 222 30 280 5.9

Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.



Features:



1. The insulation parts are made of midden-high aluminum porcelain C120 . the porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.
2. the material of locking device are stainless steel , its function is to guarantee insulator connection with related hardware very firmly .
3. Cementing material are Portland cement to assemble porcelain body and related cap .​ even after years of servicing , the cement still keep good performance.





Competitive advantage:



Reasonable insulation structure high reliability of interturn insulation.

Stainless steel flange low magnetic inductivity high resistivity.Small volume light weight.

Convenient transportation and flexible installation.

Low OSS. Low temperature rise. High mechanical strength, strong weather ability.

Outstanding crack resistance.

Low thermal expansion coefficient.
