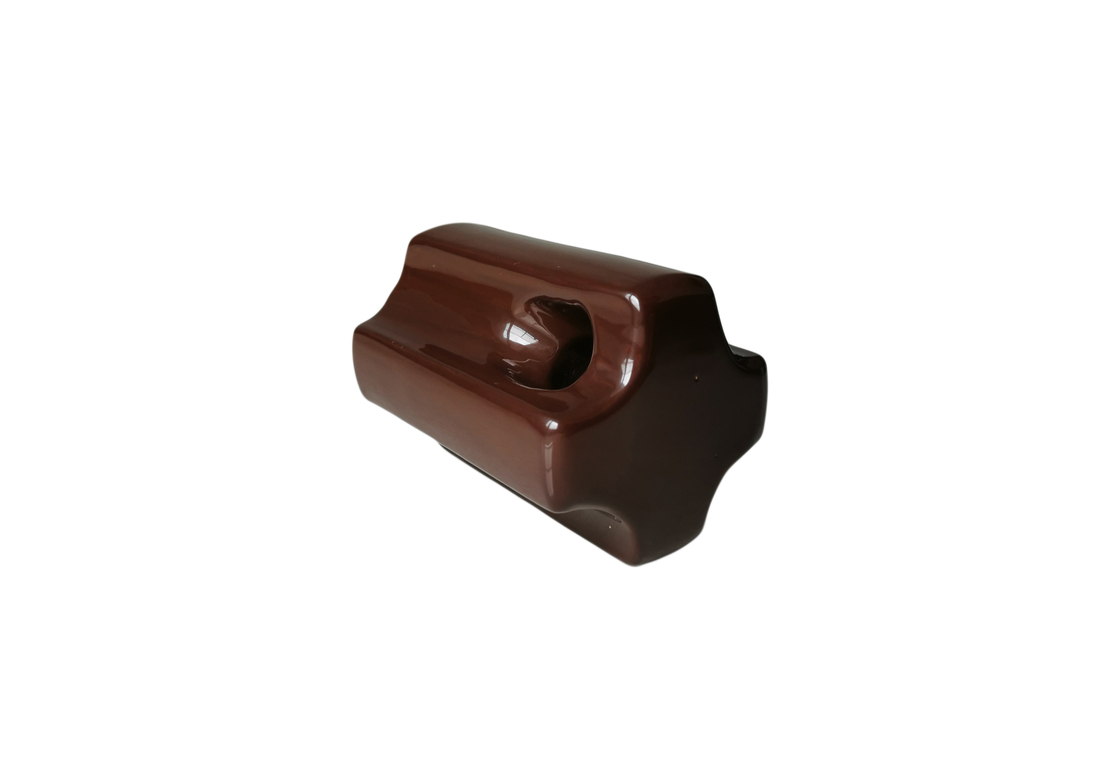

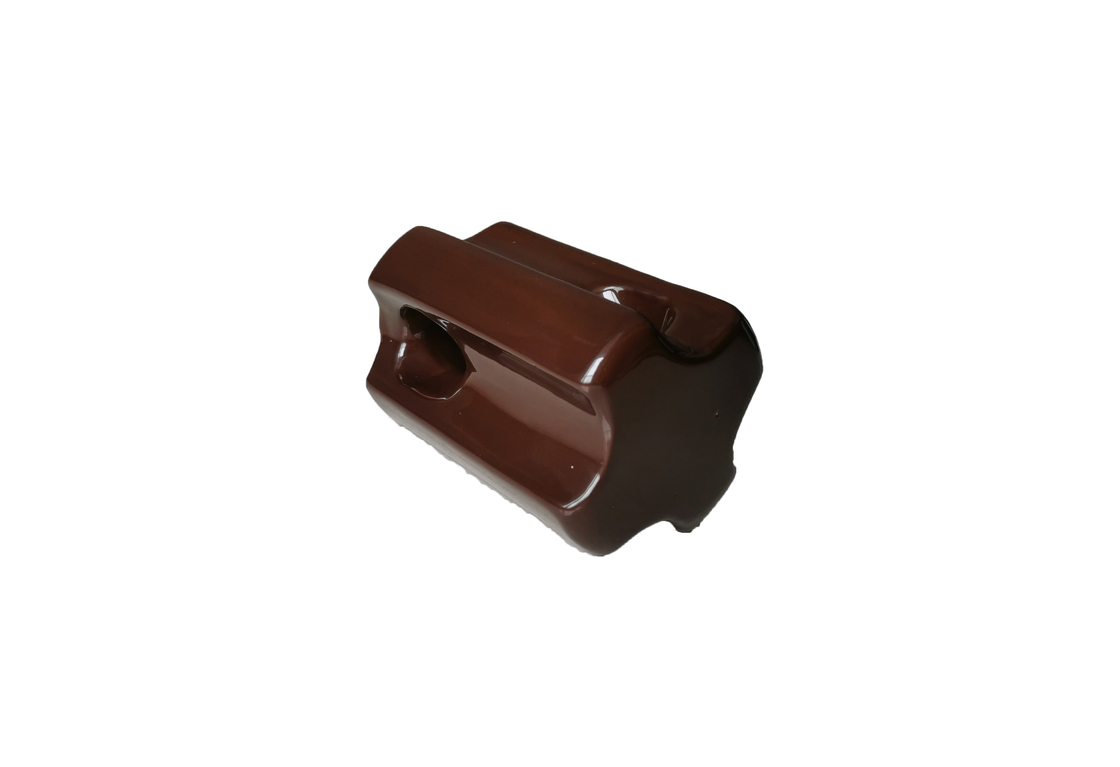

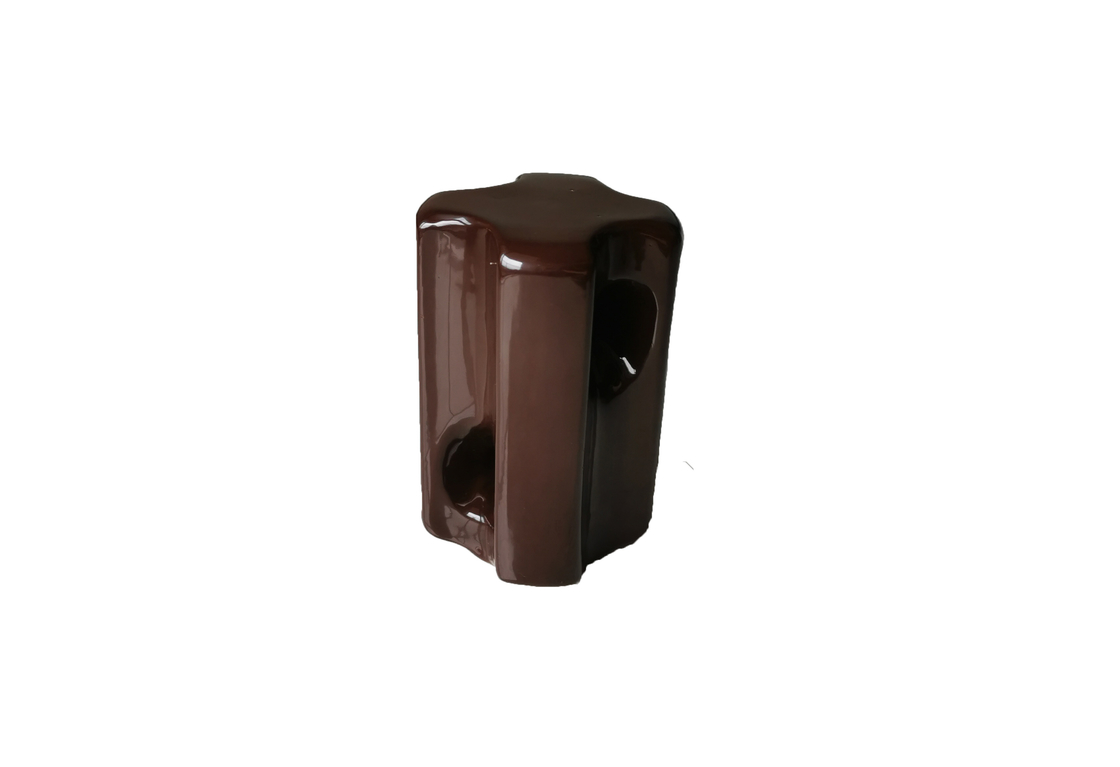

Normal Type ANSI 54-3 Porcelain Strain Insulators For Transmission

Normal Type ANSI 54-3 Porcelain Strain Insulators For Transmission

  • High Light

    ANSI 54-3 Porcelain Strain Insulators

    ,

    Transmission Line Porcelain Strain Insulators

    ,

    ANSI 54-3 Strain Insulators For Transmission

  • Color
    Brown, Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Strain Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 54-3
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Normal Type ANSI 54-3 Porcelain Strain Insulators For Transmission



Porcelain Strain Insulators normal type for transmission lines





Description:



Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.





Specification:



1. Creepage distance: 57mm

2. Min. Flashover voltage: Dry: 35kV

                                          Wet: 18kV

3. Mechanical failing load: 89kN





Applications:



ANSI strain porcelain insulators are used for overhead transmission lines.





Ordering instructions:



1.If the insulator is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.

2.When the user has special requirements, the design can be carried out according to the user's requirements.
