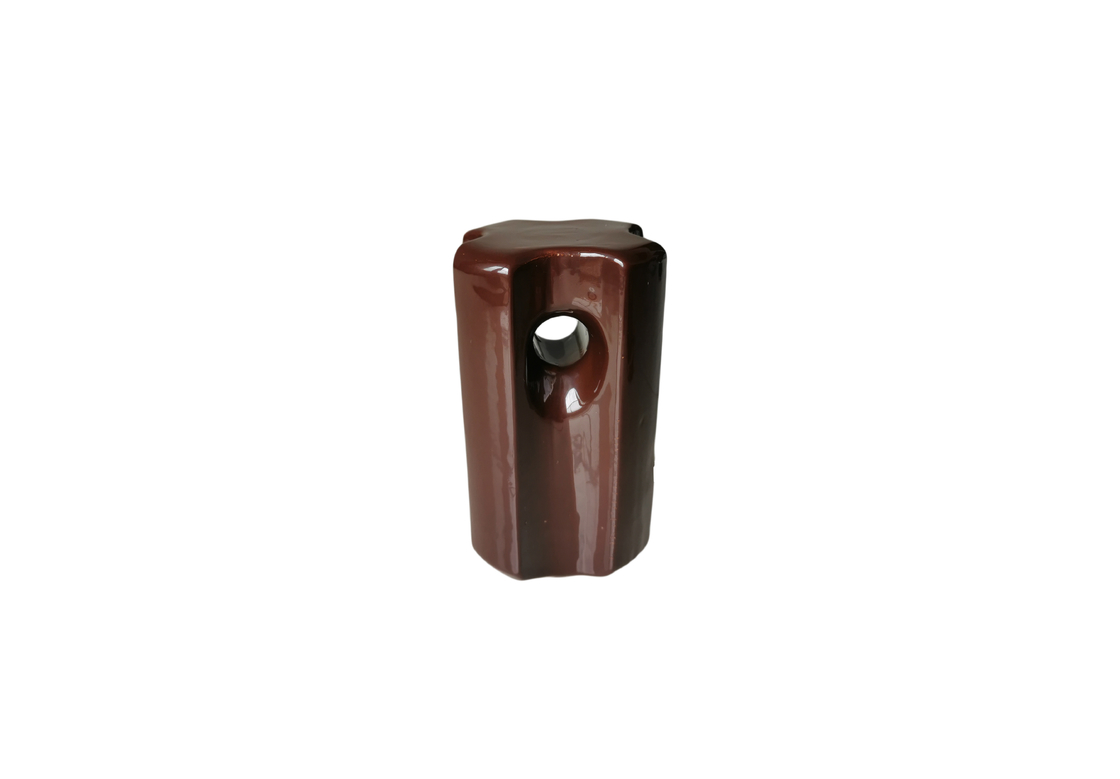

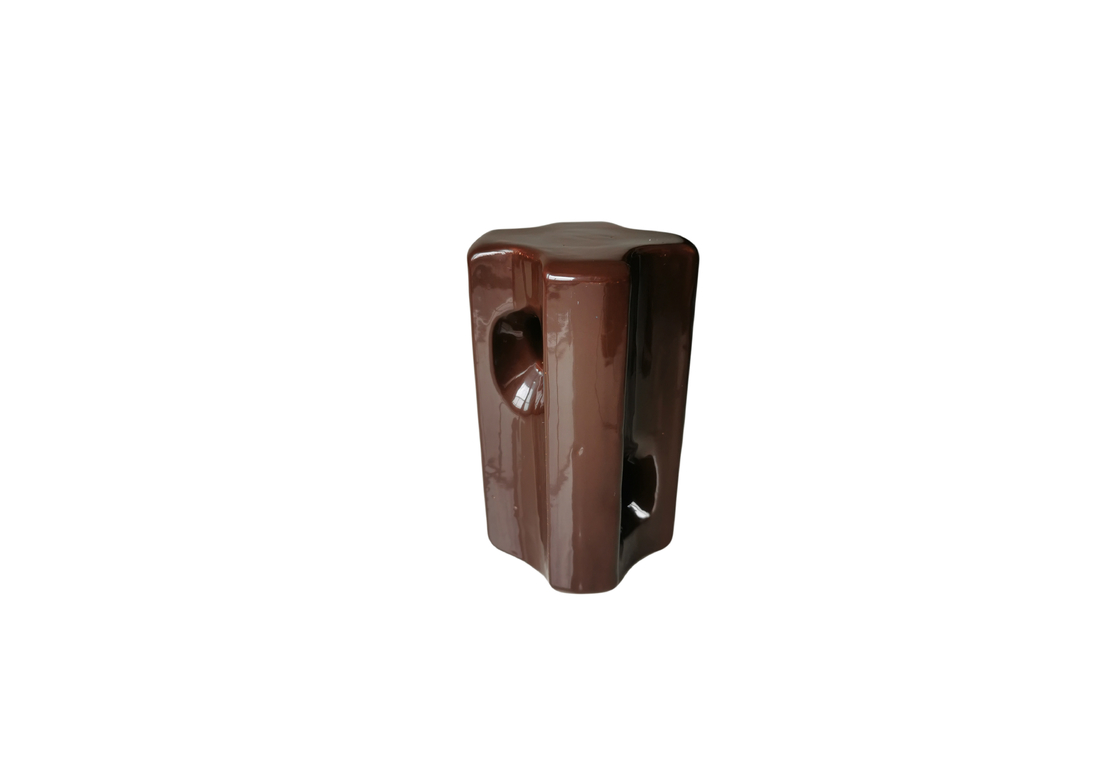

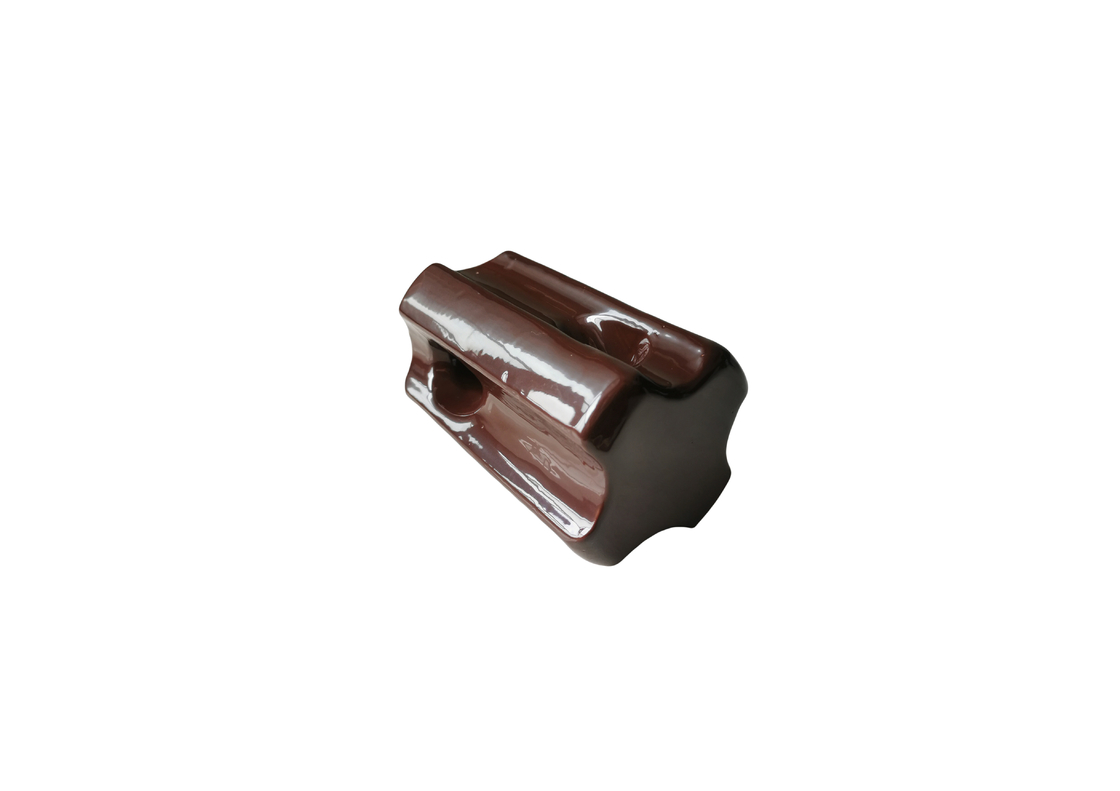

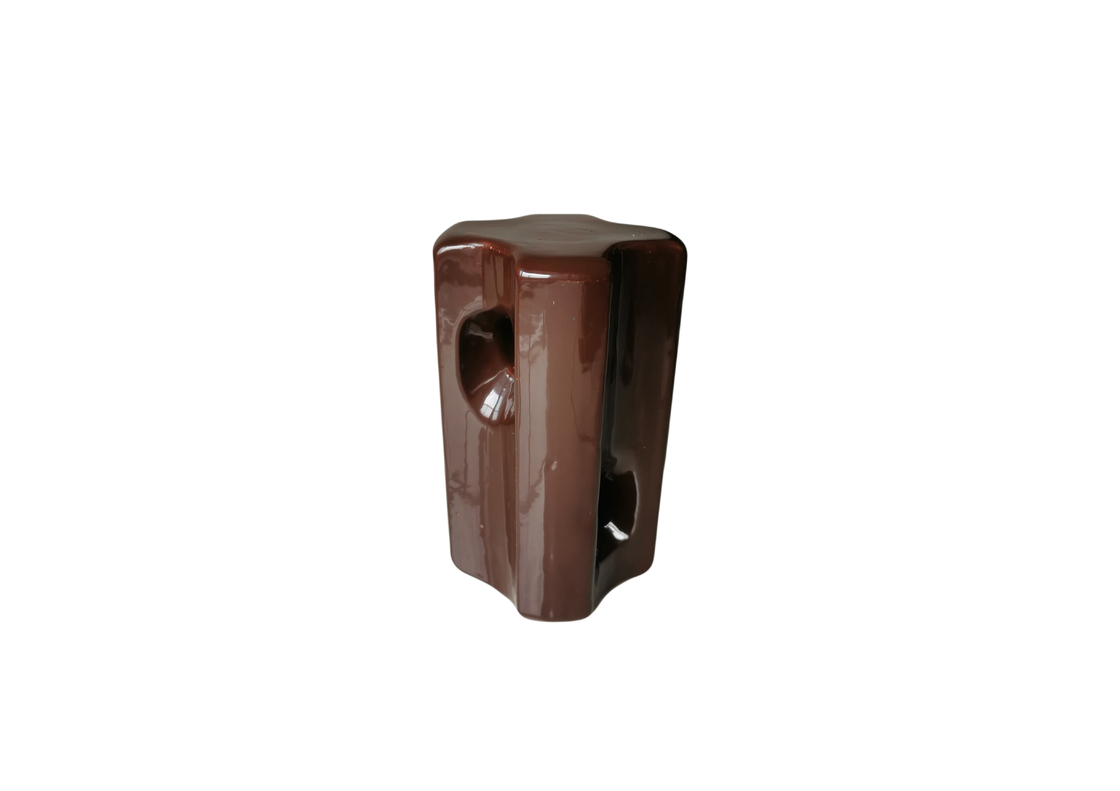

High Tensile 160kN ANSI Gy3 Porcelain Strain Insulators

High Tensile 160kN ANSI Gy3 Porcelain Strain Insulators

  • High Light

    ANSI Gy3 Porcelain Strain Insulators

    ,

    160kN Porcelain Strain Insulators

    ,

    ANSI Gy3 High Tensile Strain Insulators

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Strain Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    Gy3
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

High Tensile 160kN ANSI Gy3 Porcelain Strain Insulators



ANSI Gy3 Porcelain Strain Insulators / for overhead transmission lines







Description:



Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.





Specification:



ANSI CLASS Tensile strength (kN) Wet power frequency flashover voltage 50HZ(kV) Height (mm) Weight (kg)
Gy3 160 20 216 4.3






Applications:



ANSI strain porcelain insulators are used for overhead transmission lines.





Competitive advantage:


Our insulators have very good M & E performance , we offer 2 years quality guarantee .

Every units of insulators are tested qualified , to guarantee all insulators are without any defect.

If customer can provide technial data , We will make related insulators design . ​

OEM product are available.
