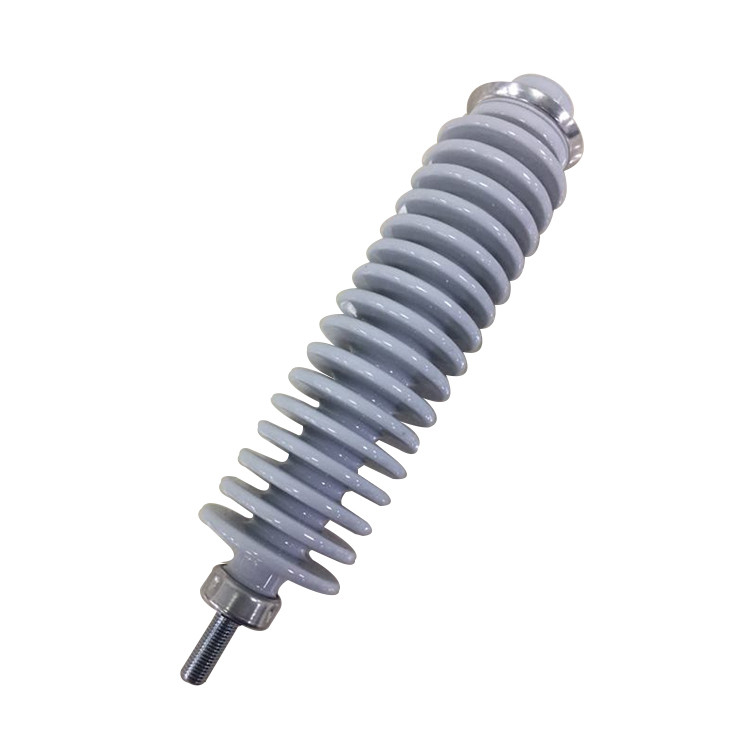

IEC 40.5kV Lighting Arrester Insulator With Metal Fitting

IEC 40.5kV Lighting Arrester Insulator With Metal Fitting

  • High Light

    40.5kV Lighting Arrester Insulator

    ,

    IEC Lighting Arrester Insulator

    ,

    40.5kV Porcelain Lightning Arrester

  • Color
    Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    IEC
  • Product Name
    Transformer Porcelain Bushing
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    P040
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

IEC 40.5kV Lighting Arrester Insulator With Metal Fitting


IEC 40.5kV elctrical Lightning Arrester Insulator with metal fitting



Competitive Advantage:



The insulators have excellent electrical & machincal performance .

we offer up to 2 years quality guarantee as per tender requirement or customer's requirement .

The porcelain glaze are hard and shinning , good self-cleaning advantage and easy for maintenance .

We can design insulators based on customer’s requirement or special technical specifications.





Specifications:



Model Rated voltage(kV) Height (mm) Min. nominal creepage distance(mm) Cantilever strength (kN) Torsion strength (kN.m) Weight (Kg)
ZSW-40.5/4 40.5 550 1256 4 2 35



1. Certified by IEC / ANSI / GB / ISO9001

2.We design and produce according to customers' drawings

3.We supply composite insulators with reliable quality, competitive price and committed service.




Product feature:



To ensure mechanical strength and heat stability we adopt high strength ceramic formula contenting higher aluminium oxide. As per drawing and standard requirement,all post insulator will conduct visual dimension ,geometric tolerance ,ultrasonic test and four-way bending test one by one.

High-voltage insulators made by KSIpower posses beautiful appearance ,pure glaze,reasonable structure,good resistance to heat and cold, stronger for low temperature cold resistance,good earthquake resistance,high mechanical strength ,good resistance to soiling,low radio interference,safe and reliable operation.
