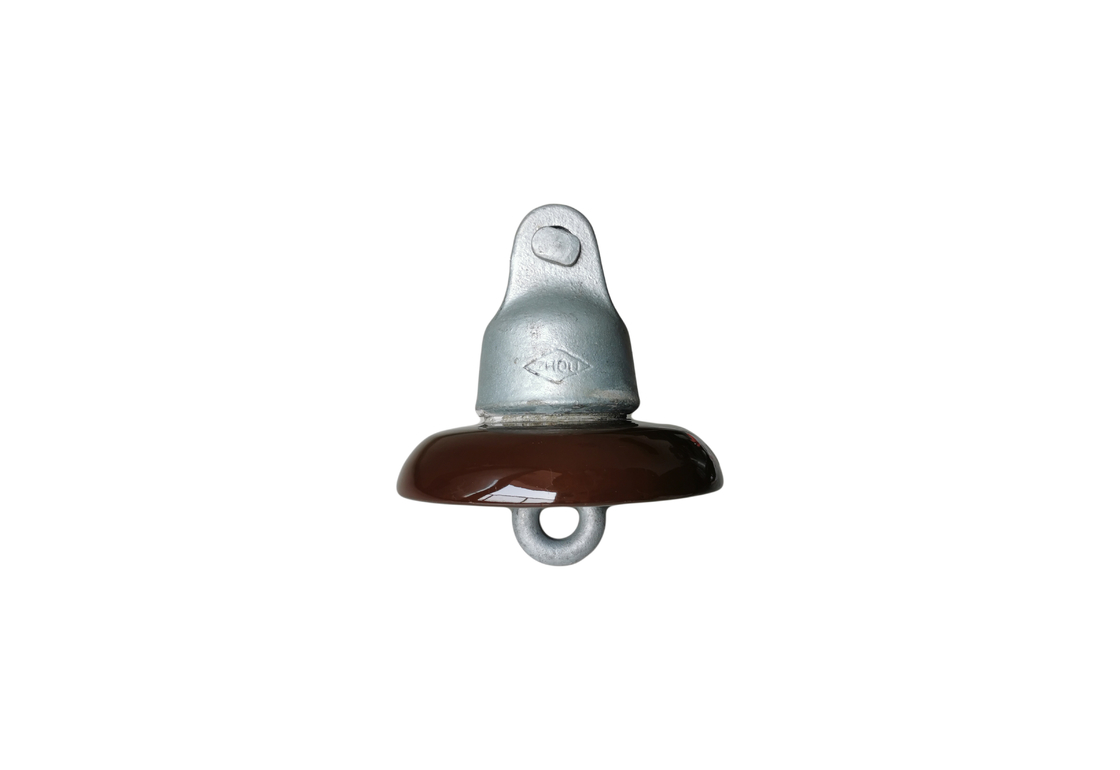

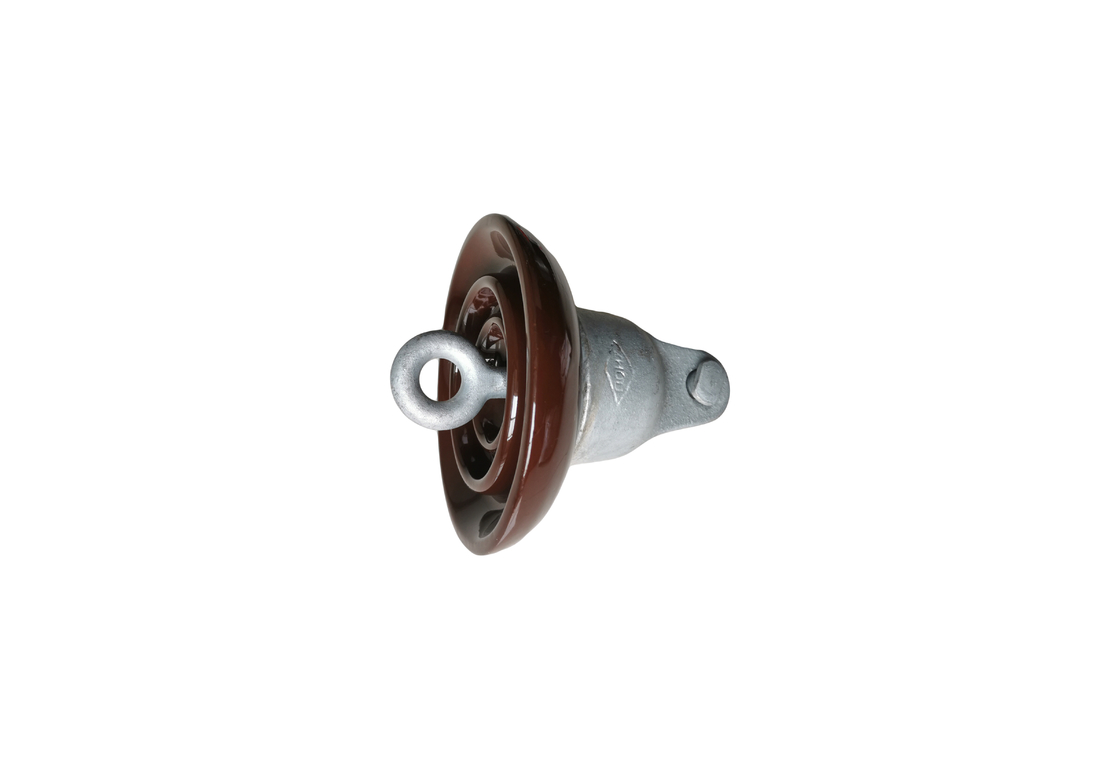

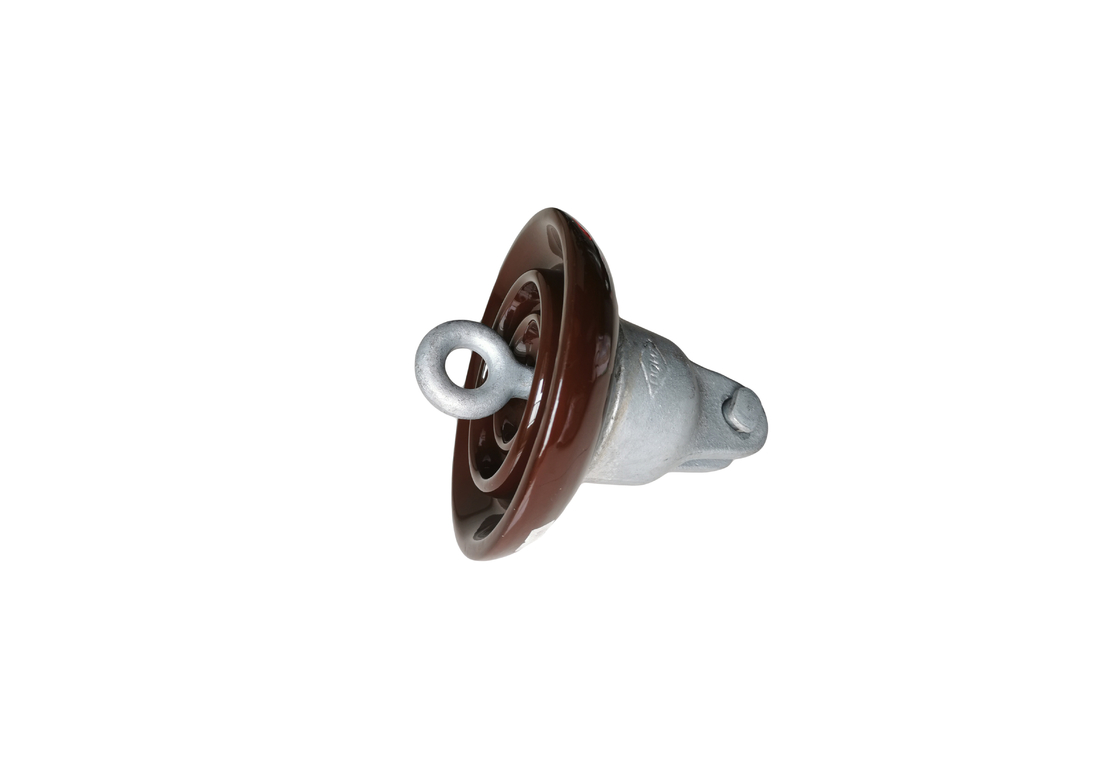

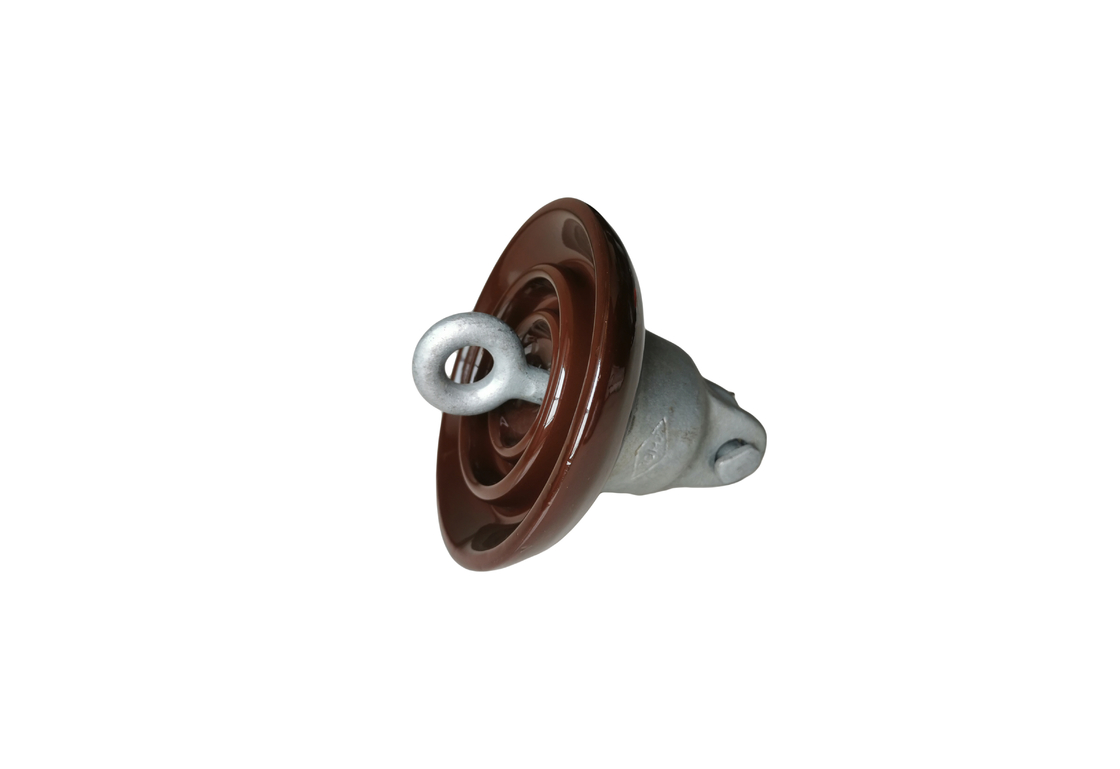

ANSI Standard OEM 4.6kg Suspension Type Insulators

ANSI Standard OEM 4.6kg Suspension Type Insulators

  • High Light

    4.6kg Suspension Type Insulators

    ,

    OEM Suspension Type Insulators

    ,

    4.6kg Suspension Disc Insulator

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    52-3
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

ANSI Standard OEM 4.6kg Suspension Type Insulators



ANSI Standard suspension porcelain insulator / brown / OEM available





Description:

ANSI CLASS Disc dia. (mm) Unit spacing height (mm) Creepage distance (mm) Mechnical failing load (KN) Lower frequency flashover voltage Critical impulse flashover voltage Weight (kg)
Dry(kV) Wet(kV) Positive(kV)
52-3 254 146 292 67 80 50 110 4.6

The insulator cap are made from high density malleable iron , each piece of caps are well tested with magnetic powder testing .
The insulator cap surface are hot galvanized , Min. zinc thickness are more than 85μm . the galvanization surface are smooth and shinning , and without of any defect.





Features:



1. Porcelain metal cap, steel foot and porcelain upper part surfaces which are in contact with cement shall be coated with a film of thin bitumastic paint.
2. Standard: product drawing, GB1001-86 (cap and suspension insulator technical requirements), GB7253-87
3. Cement adhesive shall conforms to JB4307-86




Applications:



This cap and pin suspension porcelain insulator is used for overhead transmission lines.





Competitive advantage:



Our insulators have very good M & E performance , we offer 2 years quality guarantee .

Every units of insulators are tested qualified , to guarantee all insulators are without any defect.

If customer can provide technial data , We will make related insulators design . ​

OEM product are available.
