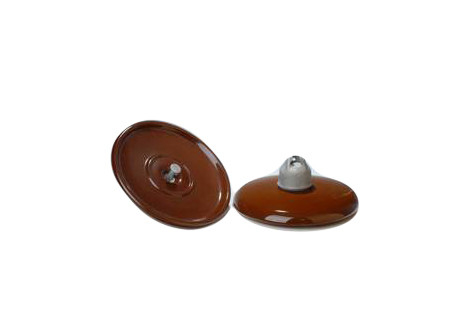

high strength 70kN ANSI U70C Disc Suspension Insulator

high strength 70kN ANSI U70C Disc Suspension Insulator

  • High Light

    ANSI U70C Disc Suspension Insulator

    ,

    70kN Disc Suspension Insulator

    ,

    ANSI U70C Disk Type Insulator

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    XP-70C/U70C
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

high strength 70kN ANSI U70C Disc Suspension Insulator



High voltage 70 kN disk type Porcelain Suspension Insulator U70C





Description:



1. Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body.

2. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.





Specification:



ANSI CLASS Disc dia. (mm) Unit spacing height (mm) Creepage distance (mm) Mechnical failing load (kN) Routine proof test load (kN) Lower frequency flashover voltage 50% impulse flashover voltage Weight (kg)
Dry(kV) Wet(kV) Positive(kV)
XP-70C 254 146 292 70 28 78 45 120 4.6





Application:



Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.





Competitive advantage:


Our insulators have very good M&E performance, we offer 2 years quality guarantee.

Every units of insulators are tested qualified, to guarantee all insulators are without any defect.

If customer can provide technial data, We will make related insulators design.​

OEM product are available.
