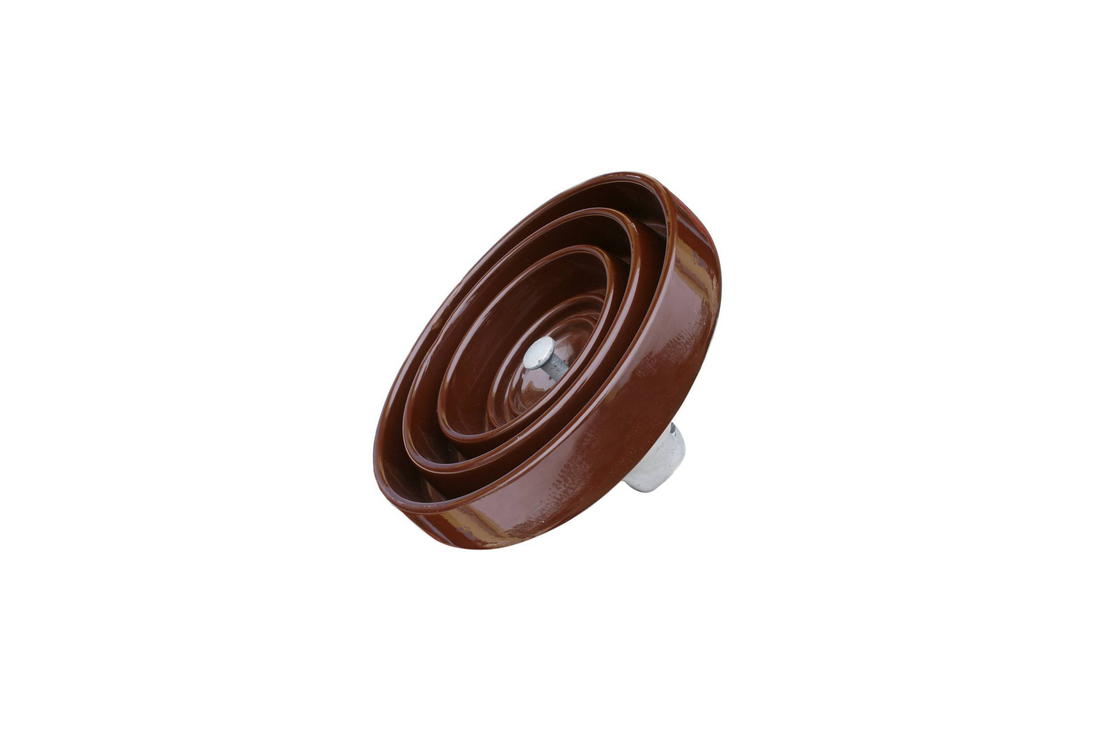

Brown color ANSI standard Porcelain Suspension Insulator 52-3
Description:
Suspension insulator is one of the main type of our Orient Power product, except porcelain suspension insulator, we also produce disc suspension insulator, long rod suspension insulator, porcelain stay insulator, porcelain ,spool insulator and so on.
Specification:
| ANSI CLASS | Disc dia. (mm) | Unit spacing height (mm) | Creepage distance (mm) | Mechnical failing load (kN) | Impact strength (N.m) | Routine proof test load (kN) | Lower frequency flashover voltage | Critical impulse flashover voltage | Weight (kg) | |
| Dry(kV) | Wet(kV) | Positive(kV) | ||||||||
| 52-3 | 254 | 146 | 292 | 67 | 6 | 33.5 | 80 | 50 | 125 | 4.6 |
Application:
Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.
Competitive advantage:
Our insulator have passed ISO9001 certification and made accordance with IEC,ANSI,AS and DIN standard. Most of our insulators are exported abroad.
We welcome you contact us for more suspension insulator information or inquiry.
Our products are sold all over the world, you can rest assured.
