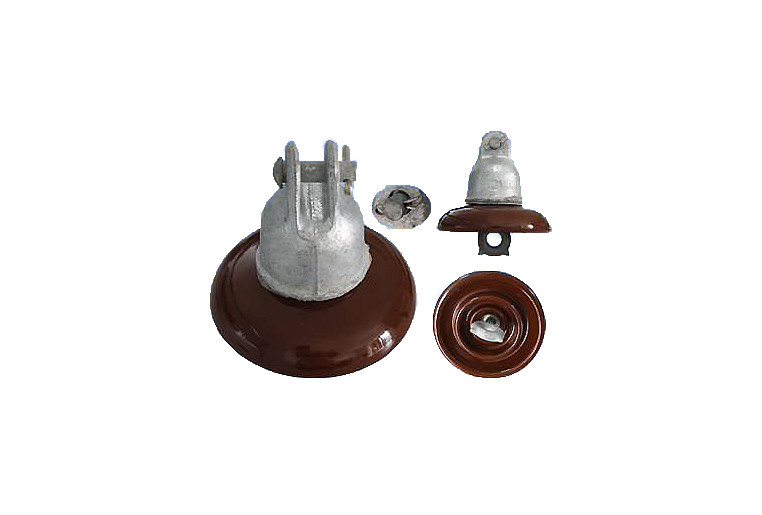

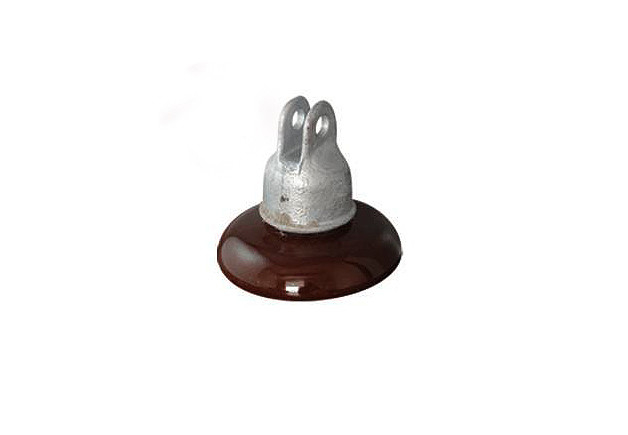

Porcelain 44kN ANSI 52-1 Disk Type Insulator

Porcelain 44kN ANSI 52-1 Disk Type Insulator

  • High Light

    ANSI 52-1 Disk Type Insulator

    ,

    44kN Disk Type Insulator

    ,

    ANSI 52-1 Disc Suspension Insulator

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    52-1
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

Porcelain 44kN ANSI 52-1 Disk Type Insulator



ANSI standard Porcelain Suspension Insulator normal type 52-1





Description:



Suspension insulator is one of the main type of our Orient Power product, except porcelain suspension insulator, we also produce disc suspension insulator, long rod suspension insulator, porcelain stay insulator, porcelain ,spool insulator and so on.





Specification:



ANSI CLASS Disc dia. (mm) Unit spacing height (mm) Creepage distance (mm) Mechnical failing load (KN) Impact strength (N.m) Routine proof test load (kN) Lower frequency flashover voltage Critical impulse flashover voltage Weight (kg)
Dry(kV) Wet(kV) Positive(kV)
52-1 152 140 178 44 5 22 60 30 100 2.5





Application:



Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.




Competitive advantage:



Reasonable insulation structure high reliability of interturn insulation.

Stainless steel flange low magnetic inductivity high resistivity.Small volume light weight.

Convenient transportation and flexible installation.

Low OSS. Low temperature rise.High mechanical strength, strong weather ability.

Outstanding crack resistance.

Low thermal expansion coefficient.
