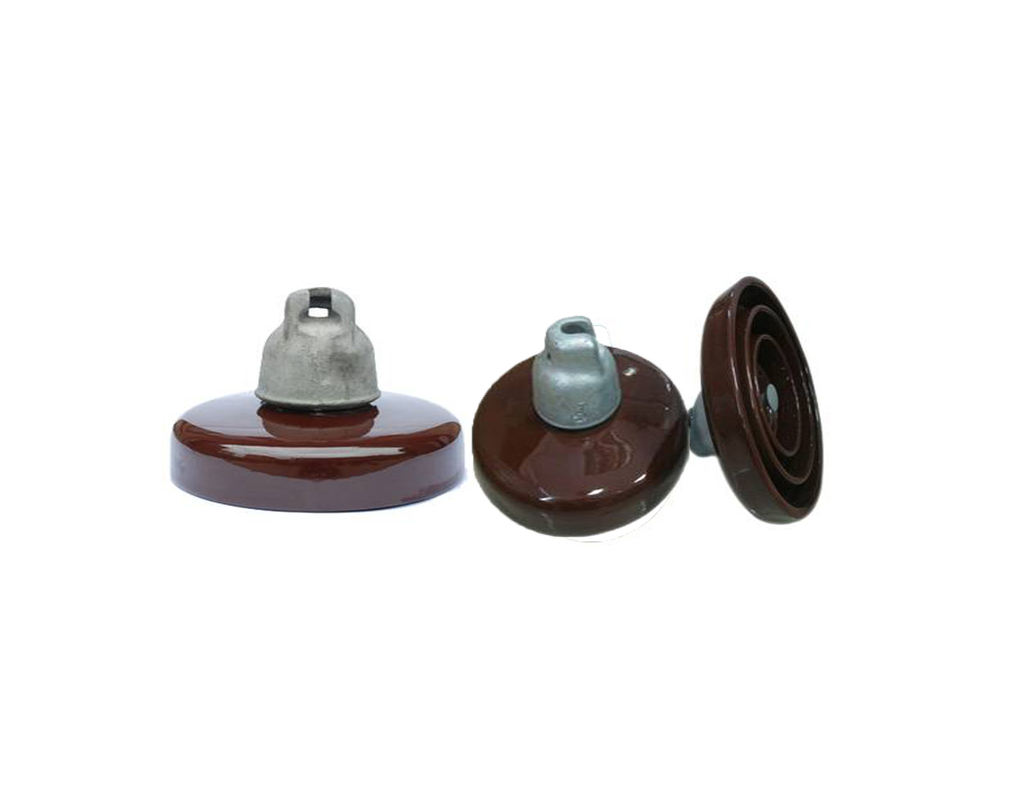

Brown color high voltage porcelain disc suspension insulators U80BL
Description:
Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors. The normal type disc suspension porcelain insulators include standard type and large creepage distance type insulators. These insulators are widely used in clean areas and light pollution areas.
Specification:
| ANSI CLASS | Disc dia. (mm) | Unit spacing height (mm) | Creepage distance (mm) | Mechnical failing load (kN) | Routine proof test load (kN) | Lower frequency flashover voltage | Critical impulse flashover voltage | Weight (kg) | |
| Dry(kV) | Wet(kV) | Positive(kV) | |||||||
| U80BL | 254 | 146 | 292 | 80 | 32 | 78 | 45 | 120 | 4.6 |
Application:
Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.
Features:
1. The insulation parts are made of midden-high aluminum porcelain C120 . the porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.
2. the material of locking device are stainless steel , its function is to guarantee insulator connection with related hardware very firmly .
3. Cementing material are Portland cement to assemble porcelain body and related cap . even after years of servicing , the cement still keep good performance.
