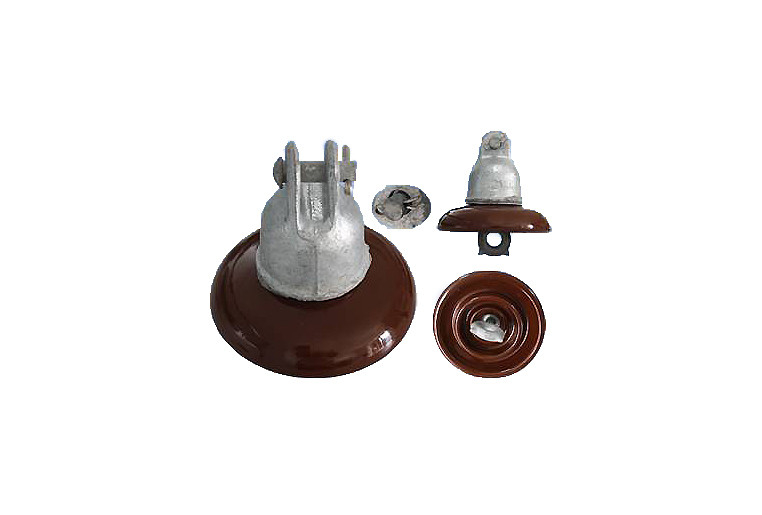

Porcelain 44kN ANSI 52-1 Disk Type Insulator
Description:
- Suspension insulator is one of the main type of our Orient Power product, except porcelain suspension insulator, we also produce disc suspension insulator, long rod suspension insulator, porcelain stay insulator, porcelain ,spool insulator and so on.
Specification:
| ANSI CLASS |
Disc dia. (mm) |
Unit spacing height (mm) |
Creepage distance (mm) |
Mechnical failing load (KN) |
Impact strength (N.m) |
Routine proof test load (kN) |
Lower frequency flashover voltage |
Critical impulse flashover voltage |
Weight (kg) |
| Dry(kV) |
Wet(kV) |
Positive(kV) |
| 52-1 |
152 |
140 |
178 |
44 |
5 |
22 |
60 |
30 |
100 |
2.5 |
Application:
- Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.
Competitive advantage:
- Outstanding crack resistance.
- Low thermal expansion coefficient.
- Convenient transportation and flexible installation.
- Reasonable insulation structure high reliability of interturn insulation.
- Low OSS. Low temperature rise.High mechanical strength, strong weather ability.
- Stainless steel flange low magnetic inductivity high resistivity.Small volume light weight.
