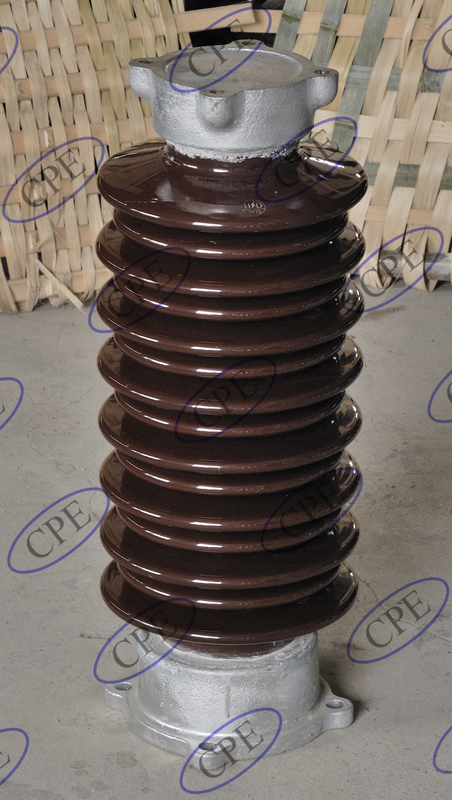

965mm Height 35KV Distribution Line Lightning Arrester Insulator
Descriptions:
We offer a complete line of porcelain bushings and bushing assemblies for transformer, switchgear, capacitor (2 flute to 14 flute) and special power apparatus applications. These durable, reliable bushings are high-quality porcelain designed to offer years of maintenance-free service.
Specifications:
Applications:
Arrester bushings are used in transmmission line and distribution line.
| Cat. No. | Type | Rated Voltage | Bend breakage load (kN.m) | Main dimensions | |||
| H | D | d1 | Shed.no. | ||||
| 63915 | Y5WZ-35(w) | 42 | 4 | 965 | 240 | 112 | 22 |
| 66005 | Y5WZ-66 | 66 | 4 | 1100 | 240 | 112 | 26 |
Ordering instructions:
1. If the transformer bushing is to be ordered, please provide rated voltage, rated current, rated frequency, length of oil end, installation method, length of cable crossing (very important), length of CT mounting position (very important), environmental pollution level, altitude, environmental temperature.
2. When the user has special requirements, the design can be carried out according to the user's requirements.
Our products are sold all over the world, you can rest assured.
