High Voltage Suspension Type Insulator ANSI Standard Brown Color 90kN

High Voltage Suspension Type Insulator ANSI Standard Brown Color 90kN

  • High Light

    90kN Suspension Type Insulator

    ,

    ANSI Standard Suspension Type Insulator

    ,

    Oem Brown Porcelain Suspension Insulator

  • Color
    Brown
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Sample
    Provided
  • Oem
    YES
  • Pack
    Standard Export Packing
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    U80BL
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN PALLET
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    3000PCS PER MONTH

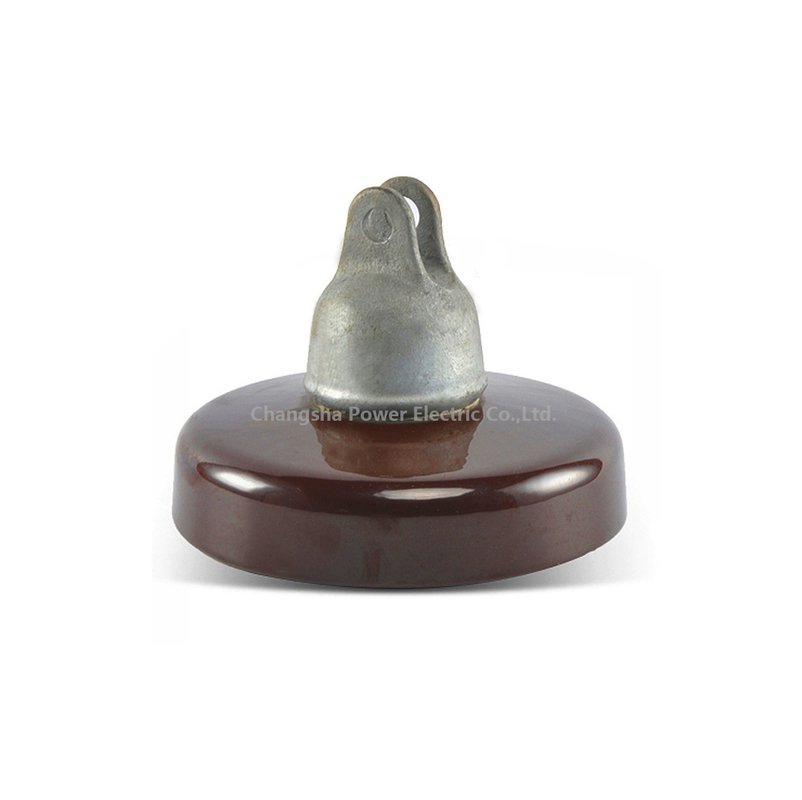

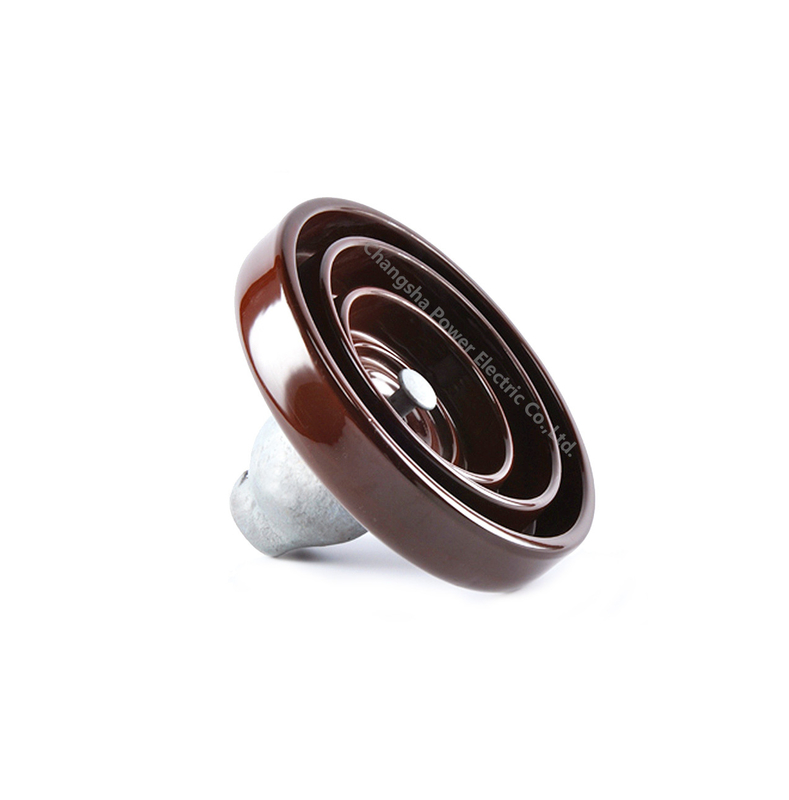

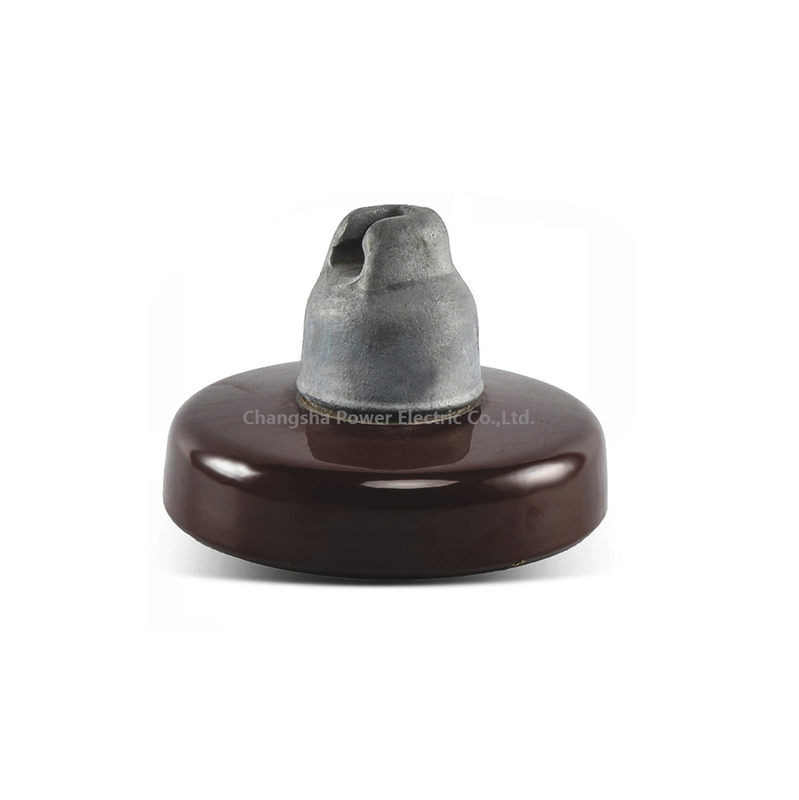

High Voltage Suspension Type Insulator ANSI Standard Brown Color 90kN

Brown Color High Voltage ANSI Standard 90kN Suspension Type Insulator





Description:



Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors. The normal type disc suspension porcelain insulators include standard type and large creepage distance type insulators. These insulators are widely used in clean areas and light pollution areas.





Specification:



Cat.No QS1141
Type XHP-90
Class U80BP
Unit spacing(H) mm 146
Nominal diameter(D) mm 255
Nominal creepage distance mm 432
Rated E&M failing load KN 90
Routine tensile load KN 50
Coupling size 16



Power frequency withstand voltage

Wet KV 42
Dry KV 80
Dry lightning impulse withstand voltage KV 120
Power frequency puncture voltage KV 120
Radio interference voltage Test voltage to groud KV 10
1MHz Max.RIV at 1MHZ 50
Applicable standard: GB IEC AS BS





Application:



Suspension insulator can be used on power transmission and distribution overhead lines. Especially on the extreme high voltage transmission lines,it can not be replaced by other insulators.





Features:



1. The insulation parts are made of midden-high aluminum porcelain C120 . the porcelain surface covered a layer of hard glaze , color brown , we can also produce such product with color white , grey or as per customer's specifications.
2. the material of locking device are stainless steel , its function is to guarantee insulator connection with related hardware very firmly .
3. Cementing material are Portland cement to assemble porcelain body and related cap .​ even after years of servicing , the cement still keep good performance.
