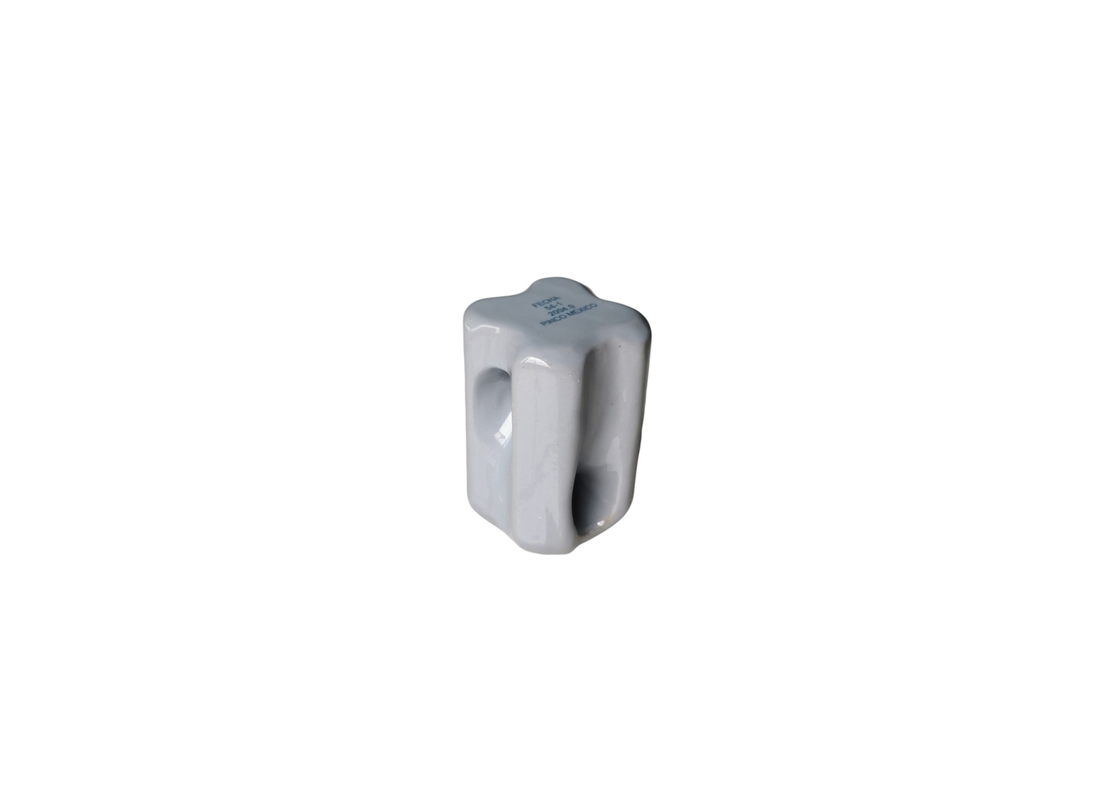

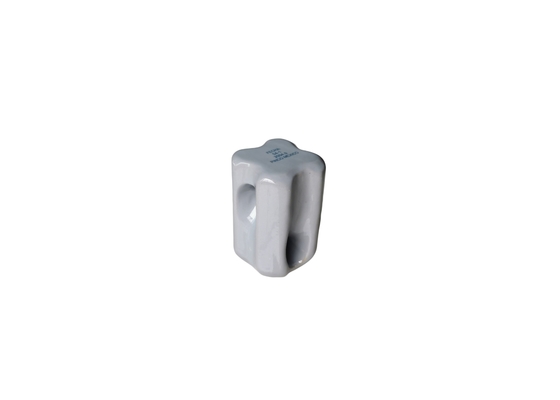

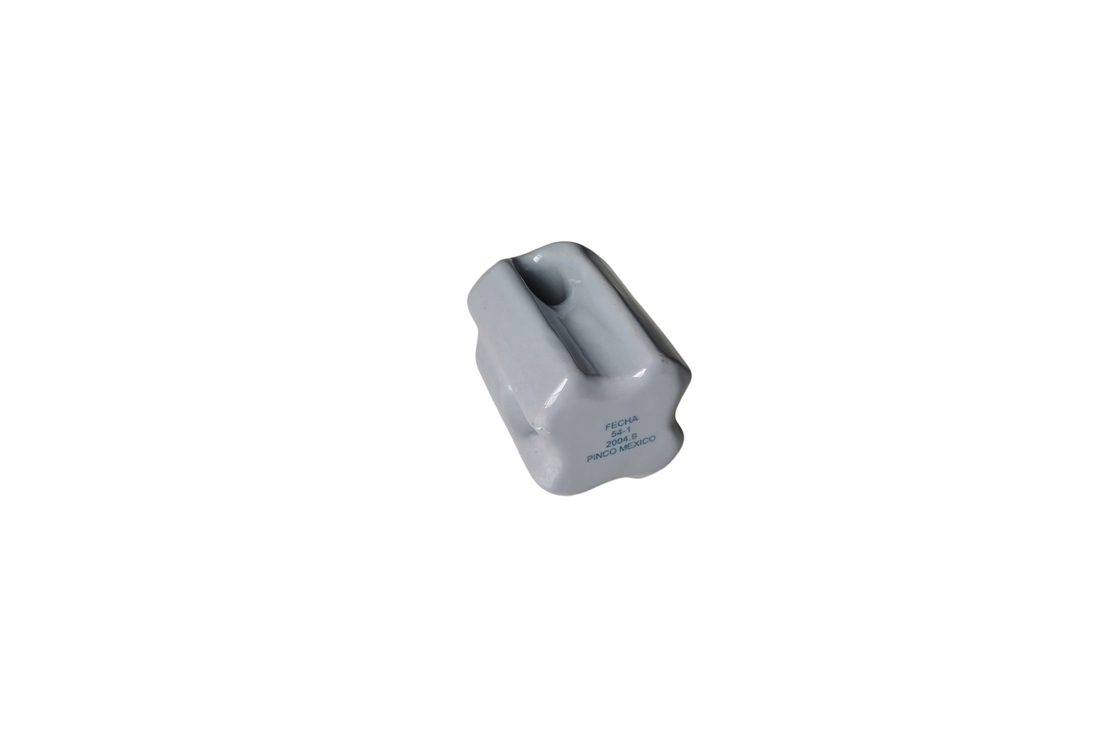

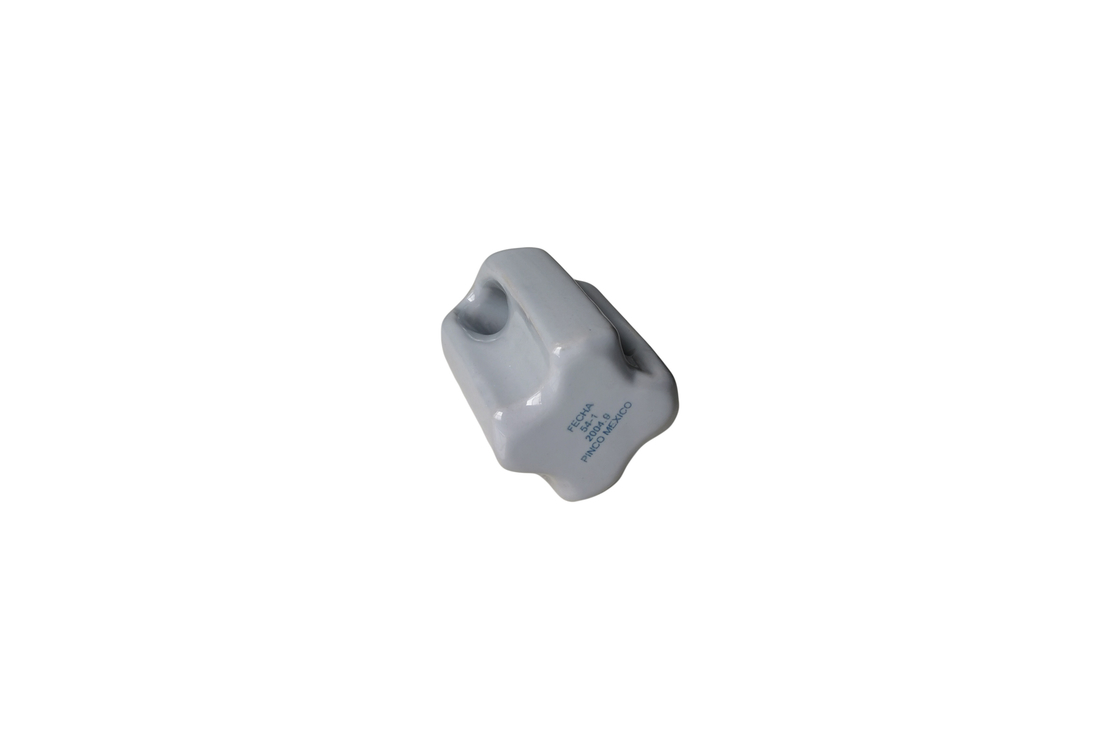

Light Gray Glazed 1.85kg 89kN Porcelain Strain Insulators

Light Gray Glazed 1.85kg 89kN Porcelain Strain Insulators

  • High Light

    89kN Porcelain Strain Insulators

    ,

    1.85kg Porcelain Strain Insulators

    ,

    89kN Light Gray Strain Insulators

  • Color
    Light Gray
  • Material
    Porcelain C-110
  • Application
    Transmission And Distribution Of Electric Power
  • Standard
    ANSI
  • Size
    Customized Size
  • Product Name
    Strain Porcelain Insulator
  • Sample
    Provided
  • Oem
    YES
  • Place of Origin
    CHINA
  • Brand Name
    CPE
  • Model Number
    ANSI 54-4
  • Minimum Order Quantity
    Negotiable
  • Price
    Negotiable
  • Packaging Details
    WOODEN CRATE
  • Delivery Time
    35DAYS
  • Payment Terms
    T/T, L/C
  • Supply Ability
    5000PCS PER MONTH

Light Gray Glazed 1.85kg 89kN Porcelain Strain Insulators



Porpular used Porcelain Strain Insulators / light gray glazed





Description:



Our insulators have externally attached caps and bases. A highly engineered cementing system transfers the load uniformly from the hardware into the porcelain body. Each insulator body is made from the highest quality clay raw materials that have been processed to be fully vitrified porcelain. The body is glazed to add strength to improve surface appearance, and enhance clean-ability.





Specification:



ANSI CLASS Creepage distance (mm) Tensile strength (kN) Low power frequency withstand voltage 50HZ Height (mm) Weight (kg)
Dry (kV) Wet (kV)
54-4 76 89 40 23 172

1.85





Applications:



ANSI strain porcelain insulators are used for overhead transmission lines.





Competitive advantage:



1) Small size, light weight, easy to transport and install.

2) High mechanical strength, reliable structure, stable performance.

3) Excellent electrical performance and good stain resistance.

4) Good anti-brittle performance, shock-proof platform, no brittle failure.

5) Exchangeable, interchangeable with ceramic insulators.
